DA56-11SURKWA - Kingbright

Description: KINGBRIGHT - DA56-11SURKWA - 7 Segment LED Display, Mechanically Rugged, Red, 20 mA, 1.95 V, 85 mcd, 2, 14.22 mm

Download DA56-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

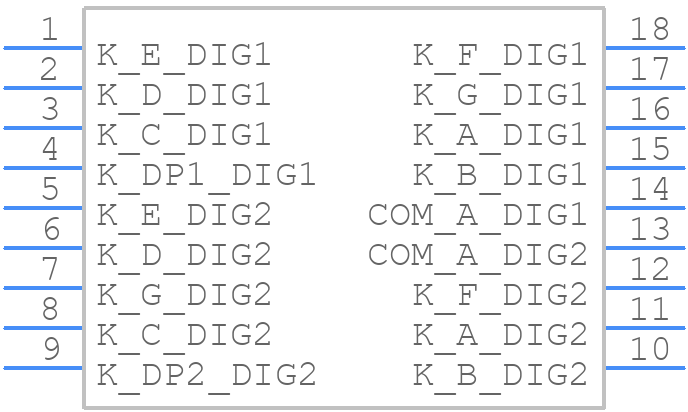

DA56-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

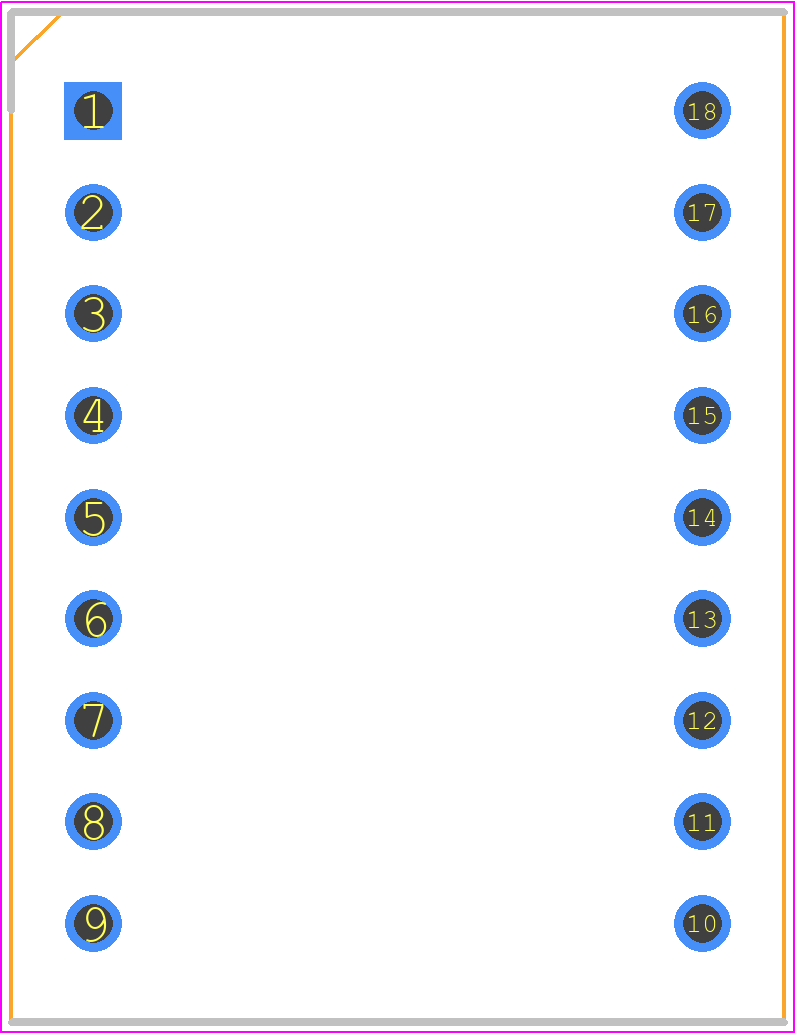

DA56-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 18-DIP (0.600", 15.24mm)
click to zoom
3D Models
DA56-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - 18-DIP (0.600", 15.24mm)
click to zoom

DA56-11SURKWA Details

  • Manufacturer Part Number:

    DA56-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

DA56-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the DA56-11SURKWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, the DA56-11SURKWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures.
  • The typical junction temperature of the DA56-11SURKWA is around 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, the DA56-11SURKWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to avoid damage.
  • The recommended reflow soldering temperature profile for the DA56-11SURKWA is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA56-11SURKWA Overview

Use the download button to access the DA56-11SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA56-, or try a keyword search, such as LED Displays
