DA56-11YWA - Kingbright

Description: Display Modules - LED Character and Numeric Yellow 7-Segment 2 Character Common Anode 2.1V 20mA 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)

Download DA56-11YWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

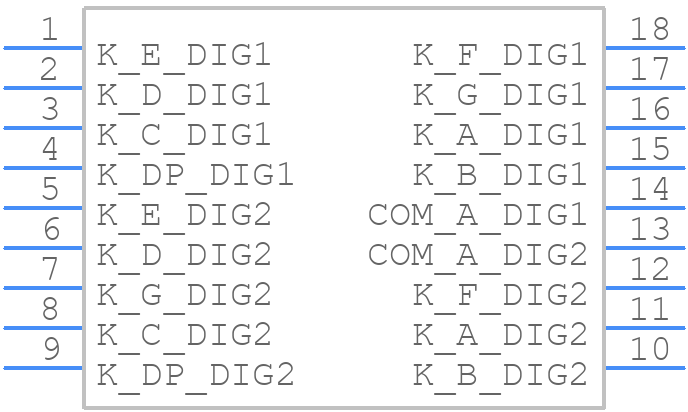

Symbol
DA56-11YWA - Kingbright - PCB symbol
click to zoom

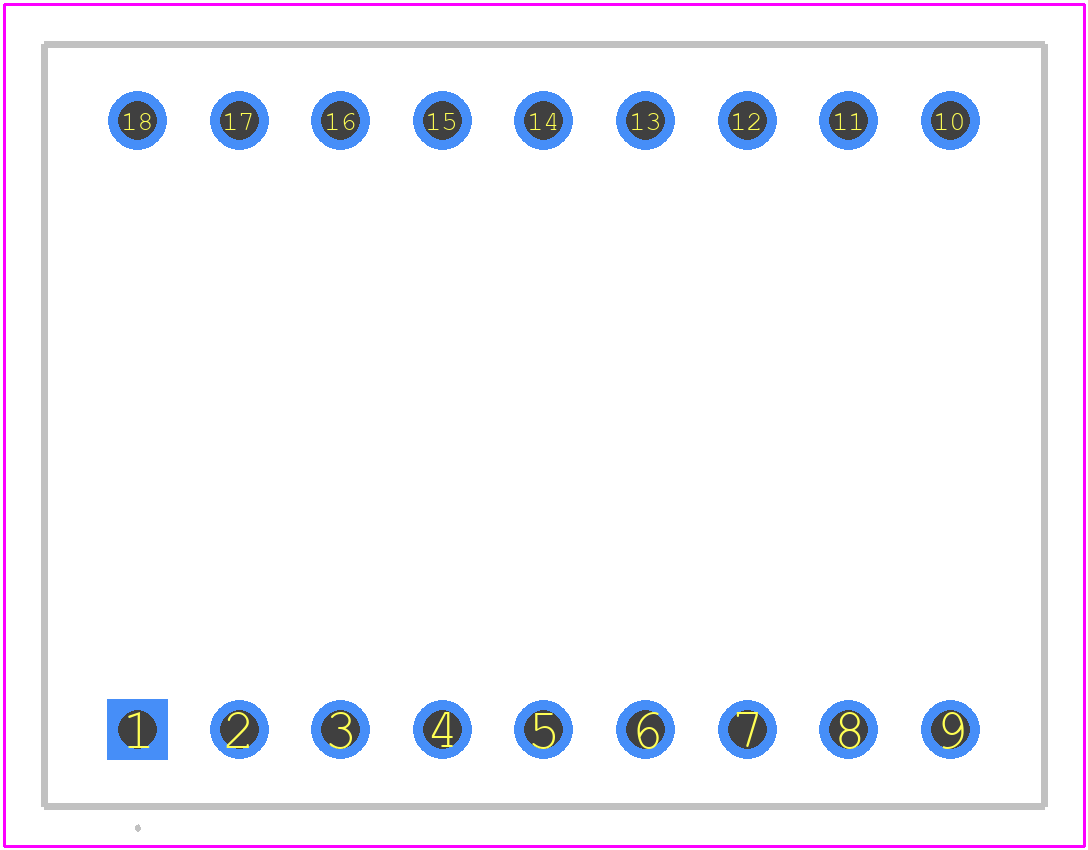

PCB Footprints
DA56-11YWA - Kingbright PCB footprint - Other - Other - 18-DIP_2025
click to zoom
3D Models
DA56-11YWA - Kingbright - 3D model - Other - 18-DIP_2025
click to zoom

DA56-11YWA Details

  • Manufacturer Part Number:

    DA56-11YWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    590 nm

DA56-11YWA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DA56-11YWA is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
  • The DA56-11YWA can be connected to a microcontroller using a serial interface, such as SPI or I2C. The specific connection method will depend on the microcontroller and the desired communication protocol.
  • The typical current consumption of the DA56-11YWA is around 20-30mA, depending on the brightness setting and the number of segments being driven.
  • The DA56-11YWA is not suitable for outdoor use without additional protection, as it is not designed to withstand direct sunlight, moisture, or extreme temperatures. However, it can be used in an outdoor application with proper protection, such as a waterproof enclosure and UV filtering.
  • The brightness of the DA56-11YWA can be adjusted by varying the current supplied to the LED segments or by using a PWM signal to control the duty cycle of the LED drive current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA56-11YWA Overview

Use the download button to access the DA56-11YWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA56-, or try a keyword search, such as LED Displays
