DA56-51PBWA/A - Kingbright

Description: LED Displays & Accessories Blue diffused 2 Digit

Download DA56-51PBWA/A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

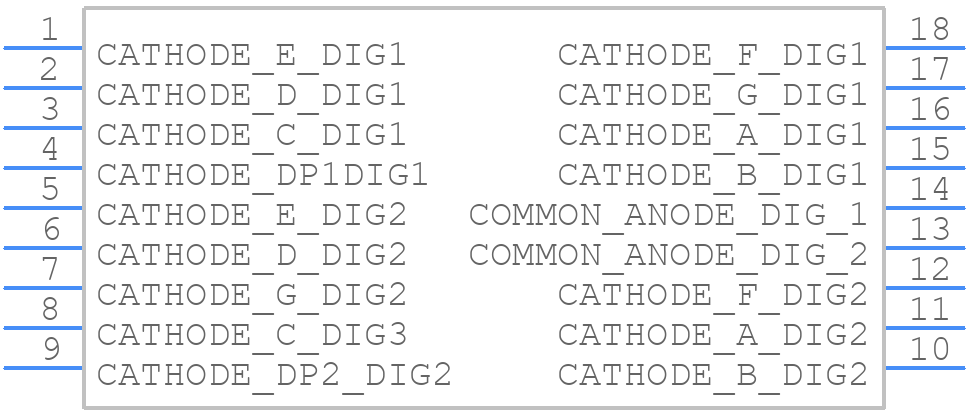

Symbol
DA56-51PBWA/A - Kingbright - PCB symbol
click to zoom

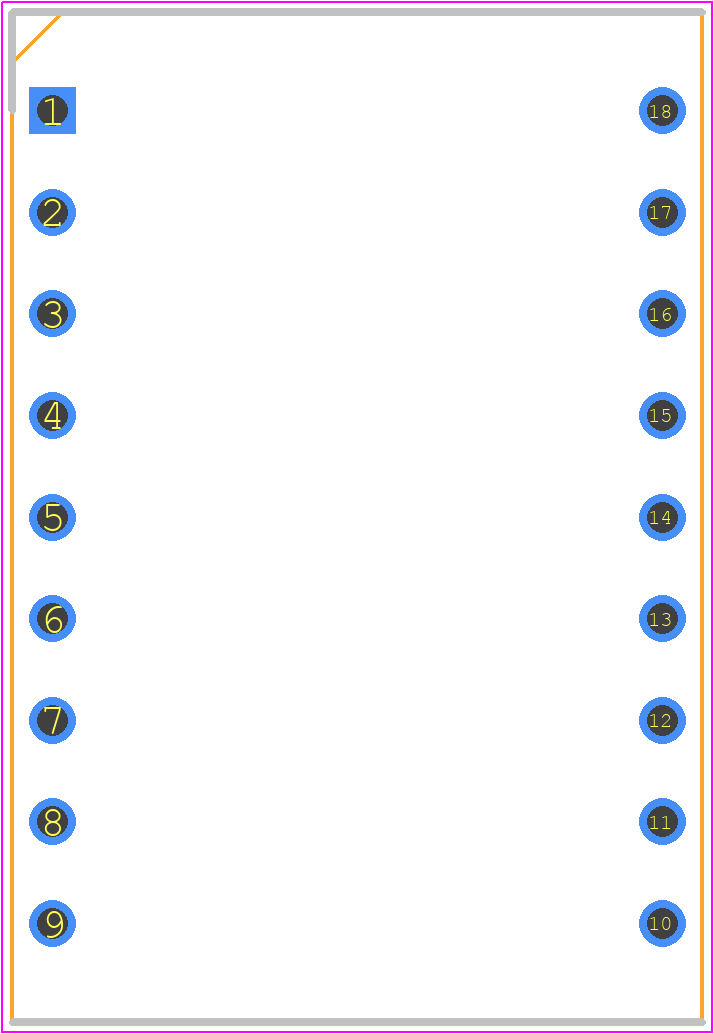

PCB Footprints
DA56-51PBWA/A - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DA56-51PBWA/A
click to zoom

DA56-51PBWA/A Details

  • Manufacturer Part Number:

    DA56-51PBWA/A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    BLUE

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

DA56-51PBWA/A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DA56-51PBWA/A is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
  • To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the LED display and follow proper handling and storage procedures to prevent moisture ingress.
  • The maximum allowable voltage for the DA56-51PBWA/A is 5.5V, with a recommended operating voltage of 5V.
  • The DA56-51PBWA/A can be interfaced with a microcontroller using a serial interface, such as SPI or I2C, and requires a 5V power supply and a ground connection.
  • The typical response time of the DA56-51PBWA/A is around 10-20 microseconds, depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA56-51PBWA/A Overview

Use the download button to access the DA56-51PBWA/A schematic symbol and PCB footprint.
