DA56-51QBWA/D footprint, schematic symbol and 3D model by Kingbright

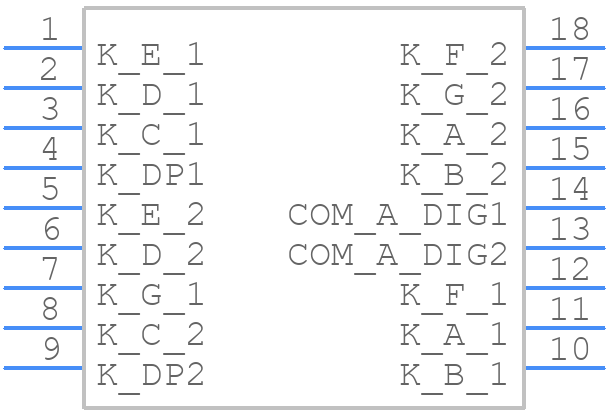

Symbol

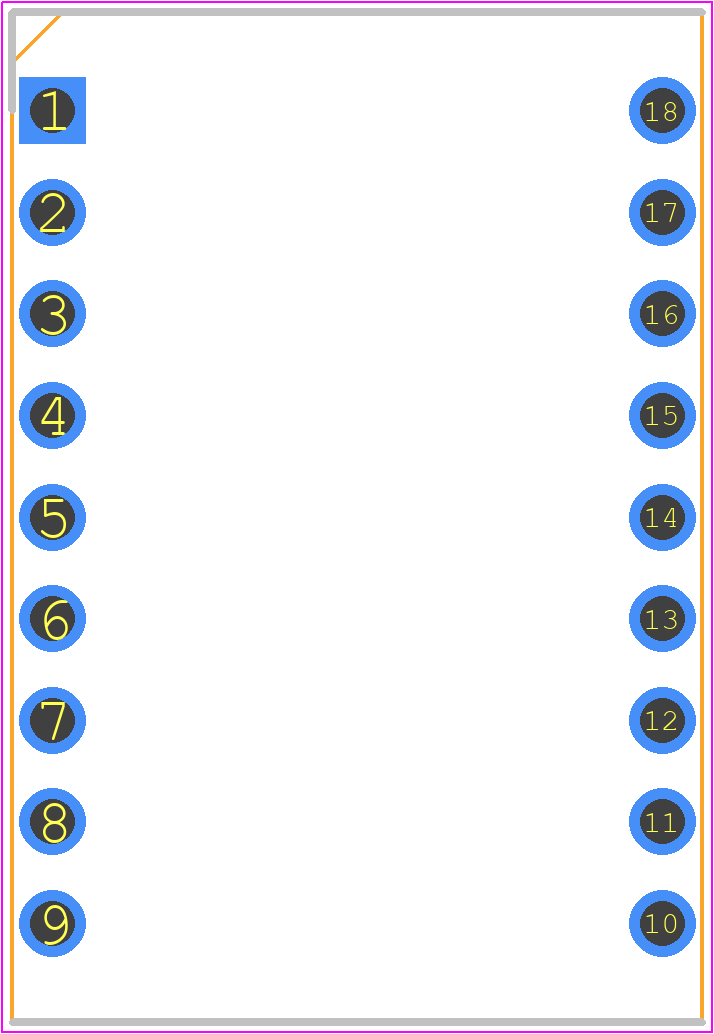

PCB Footprints

3D Models

DA56-51QBWA/D Details

The recommended operating temperature range for the DA56-51QBWA/D is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
Kingbright recommends following the standard reflow soldering profile with a peak temperature of 260°C for 10-15 seconds. It's also important to avoid applying excessive force or bending during handling to prevent damage to the LED display.
The typical lifespan of the DA56-51QBWA/D is around 50,000 to 100,000 hours, depending on operating conditions and usage. However, this can vary depending on factors such as temperature, humidity, and drive current.
While the DA56-51QBWA/D is suitable for indoor applications, it's not recommended for outdoor use without proper protection. The display is not designed to withstand direct sunlight, moisture, or extreme temperatures. If outdoor use is required, consider using a suitable enclosure or protective coating to ensure reliability.
The DA56-51QBWA/D can be interfaced with a microcontroller or driver IC using a standard 7-segment or 14-segment interface. Kingbright provides a datasheet with pinout information and recommended interface circuits. It's essential to follow the recommended interface circuit and drive current to ensure proper operation and prevent damage to the display.

Community Provided

System Verified

Community Approved

Use the download button to access the DA56-51QBWA/D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DA56-, or try a keyword search, such as LED Displays
