DA7202-00UH2 - Renesas Electronics

Description: 10 W Mono Class-D Amplifier for 2S Battery Devices

Download DA7202-00UH2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

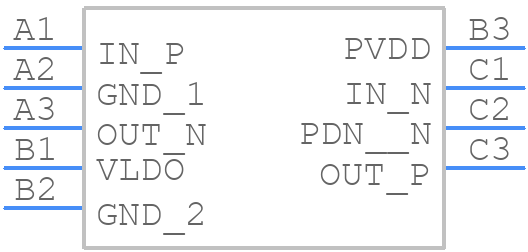

DA7202-00UH2 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
DA7202-00UH2 - Renesas Electronics PCB footprint - BGA - BGA - DA7202-00UH2
click to zoom
3D Models
DA7202-00UH2 - Renesas Electronics - 3D model - BGA - DA7202-00UH2
click to zoom

DA7202-00UH2 Details

  • Manufacturer Part Number:

    DA7202-00UH2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    18 dB

  • JESD-30 Code:

    R-PBGA-B9

  • Length:

    1.73 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Output Power-Nom:

    8 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Seated Height-Max:

    0.586 mm

  • Supply Voltage-Max (Vsup):

    9 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.54 mm

DA7202-00UH2 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The DA7202-00UH2 has a built-in overcurrent protection feature that can be enabled by setting the OCP pin high. Additionally, an external resistor can be used to set the overcurrent threshold. Refer to the datasheet for specific implementation details.
  • The DA7202-00UH2 is rated for operation from -40°C to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper thermal management and heat sinking to maintain reliable operation.
  • The DA7202-00UH2 is designed to meet the vibration requirements of automotive and industrial applications. However, it's essential to follow proper PCB design and assembly guidelines to ensure the device can withstand the expected vibration levels.
  • Renesas provides a troubleshooting guide in their application note (R01AN4461EU0100) that covers common issues, such as output voltage errors, overcurrent protection, and thermal shutdown. Additionally, Renesas offers technical support and resources to help with debugging and troubleshooting.
