DA9063-00HO2 - Renesas Electronics

Description: DA9063 is a powerful system PMIC for single-, dual-, and quad-core application processors such as those based on the ARM Cortex-A9TM and Cortex-A15TM architectures.The DA9063 follows a scalable approach of output currents and rails to supply the entire system and is capable of delivering a total of up to 12 A from its six DC-DC buck converters. High efficiency is achieved over a wide load range by automatically selecting Pulse Frequency Modulation (PFM) or Pulse Width Modulation (PWM) modes. All bucks use i

Download DA9063-00HO2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DA9063-00HO2 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

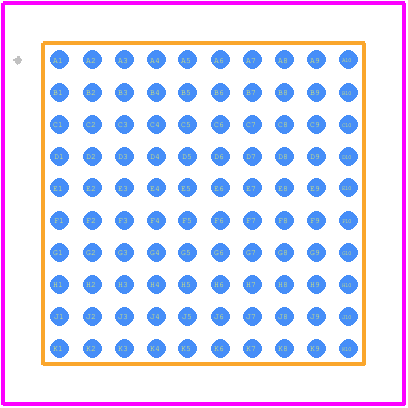

DA9063-00HO2 - Renesas Electronics PCB footprint - Other - Other - DA9063-00HO2-2
click to zoom
3D Models
DA9063-00HO2 - Renesas Electronics - 3D model - Other - DA9063-00HO2-2
click to zoom

DA9063-00HO2 Details

  • Manufacturer Part Number:

    DA9063-00HO2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    100-BGA

  • Package Description:

    TFBGA-100

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PBGA-B100

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    17

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA100,10X10,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.8V

  • Width:

    8 mm

DA9063-00HO2 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the DA9063-00HO2 application note (Document Number: DA9063-00HO2-AN-001). It includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize noise.
  • The DA9063-00HO2 has a programmable battery profile feature that allows you to configure the charger for different battery chemistries. You can use the DA9063-00HO2 evaluation board software to create a custom battery profile and upload it to the device. Renesas also provides pre-configured profiles for common battery chemistries in the device's datasheet and application notes.
  • The DA9063-00HO2 can support up to 3A of charging current, but the actual maximum current depends on the system design and the external components used. It's recommended to consult the datasheet and application notes for guidance on selecting the correct external components to achieve the desired charging current.
  • The DA9063-00HO2 has a built-in OVP feature that can be enabled through the device's registers. You can set the OVP threshold voltage and hysteresis using the DA9063-00HO2 evaluation board software or by writing to the device's registers directly. Renesas also provides guidelines for implementing OVP in the device's application notes.
  • Yes, the DA9063-00HO2 is compatible with USB-C PD controllers. Renesas provides a reference design for a USB-C PD charger using the DA9063-00HO2 and a PD controller. The reference design includes schematics, layout files, and software examples to help you get started.
