DA9073-62V32 footprint, schematic symbol and 3D model by Renesas Electronics

DA9073-62V32 - Renesas Electronics

Description: The DA9073 is a highly integrated, configurable, low quiescent current power management IC (PMIC) that integrates the most common needs for wearables, home automation and low power battery applications. The PMIC comprises a linear charger with power path management, ultra-low quiescent current (Iq) buck regulator and LDO/load switches, wide output voltage boost regulator, watchdog and protection features in an I2C configurable compact WLCSP package. DA9073 has several power-saving modes to increase battery

Download DA9073-62V32 Model

Schematic
symbols

PCB
footprints

3D
models

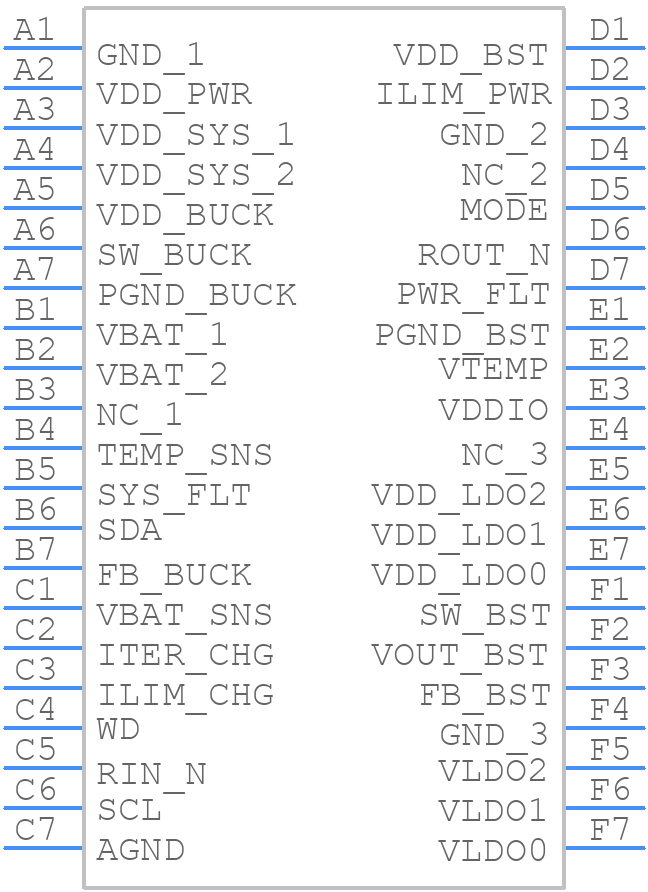

Symbol

click to zoom

PCB Footprints

DA9073-62V32 - Renesas Electronics PCB footprint - Other - Other - WLCSP 2.97 x 2.66

click to zoom

3D Models

DA9073-62V32 - Renesas Electronics - 3D model - Other - WLCSP 2.97 x 2.66

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DA9073-62V32
Part Number DA9073-62V32
Manufacturer Renesas Electronics
Pin Count 42
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - WLCSP 2.97 x 2.66
Released Date Jul 19, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

DA9073-62V32 Details

Manufacturer Part Number:
DA9073-62V32
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DA9073-62V32 Overview

Use the download button to access the DA9073-62V32 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DA907, or try a keyword search, such as Power Management Circuits
