DA9155M-02U72 - Renesas Electronics

Description: The DA9155M offers a small solution that can be easily added on to existing main charger circuit designs and solves the heat dissipation problem created when the rapid charging feature is adopted in a system. It is compatible to all rapid charging technologies. DA9155M is added in parallel with the main battery charger to solve the thermal issue.DA9155M features a buck converter capable of 2.5A constant output current with an accuracy of ±5%. Current sensing is performed with a fully integrated circuit. The

Download DA9155M-02U72 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

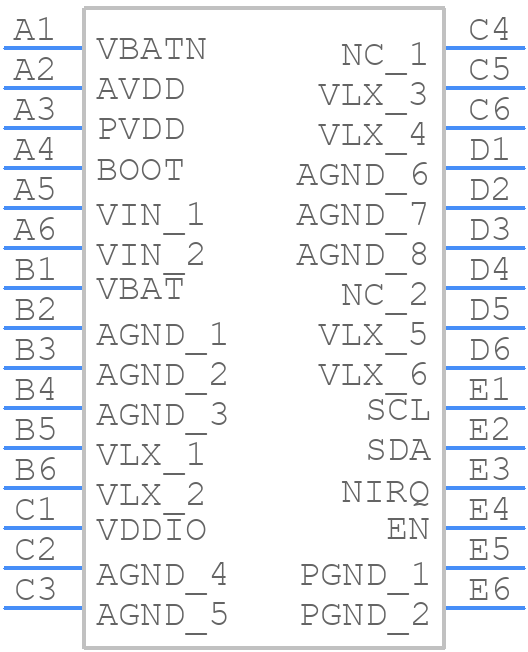

DA9155M-02U72 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
DA9155M-02U72 - Renesas Electronics PCB footprint - BGA - BGA - DA9155M-02U72--0
click to zoom
3D Models
DA9155M-02U72 - Renesas Electronics - 3D model - BGA - DA9155M-02U72--0
click to zoom

DA9155M-02U72 Details

  • Manufacturer Part Number:

    DA9155M-02U72

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    30-WLCSP

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Moisture Sensitivity Level:

    1

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA9155M-02U72 Overview

Use the download button to access the DA9155M-02U72 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA915, or try a keyword search, such as Power Management Circuits
