DAC102S085CISD/NOPB - Texas Instruments

Description: 10-Bit Micro Power DUAL Digital-to-Analog Converter with Rail-to-Rail Output

Download DAC102S085CISD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

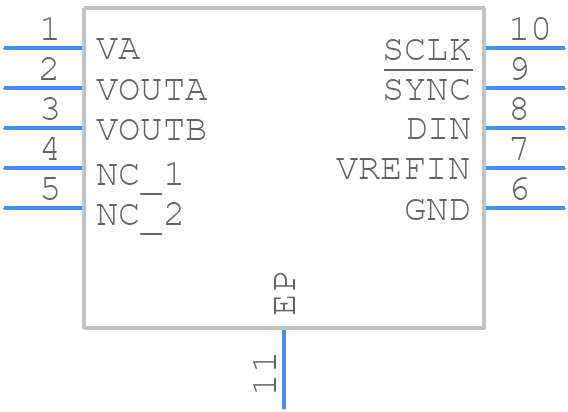

DAC102S085CISD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC102S085CISD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSC0010A
click to zoom
3D Models
DAC102S085CISD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - DSC0010A
click to zoom

DAC102S085CISD/NOPB Details

  • Manufacturer Part Number:

    DAC102S085CISD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.41 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC102S085CISD/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate DAC output voltage levels, it's essential to decouple the VREF pin with a capacitor (e.g., 10nF) to reduce noise and provide a stable reference voltage. Additionally, use a low-noise, low-impedance voltage source for VREF.
  • The maximum clock frequency for the DAC102S085CISD/NOPB is 50MHz. However, it's recommended to operate the device at a clock frequency of 20MHz or less to ensure reliable operation and minimize digital noise.
  • The output voltage settling time is dependent on the output load and the clock frequency. To ensure accurate output voltage levels, allow for a settling time of at least 100ns after the DAC output is updated. You can also use the SYNC pin to synchronize the output update with your system's clock.
  • To minimize noise and ensure reliable operation, it's recommended to follow a star-grounding layout, keep digital and analog traces separate, and use a solid ground plane. Additionally, place decoupling capacitors close to the VDD and VREF pins.
