The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
To ensure accurate DAC output voltage levels, it's essential to decouple the VREF pin with a capacitor (e.g., 10nF) to reduce noise and provide a stable reference voltage. Additionally, use a low-noise, low-impedance voltage source for VREF.
The maximum clock frequency for the DAC102S085 is 40MHz. However, it's recommended to operate the device at a clock frequency of 20MHz or less to ensure reliable data transfer and minimize potential errors.
To minimize output voltage glitches during power-up or power-down, use an external output buffer or op-amp to filter the DAC output. Additionally, consider using a power-up/power-down sequencing circuit to control the DAC output during these transitions.
To minimize noise and ensure reliable operation, it's recommended to follow a star-ground layout, keep analog and digital signals separate, and use short, direct traces for the VREF and output pins. Additionally, avoid routing digital signals near the DAC output pin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC102S085CISDX/NOPB Overview

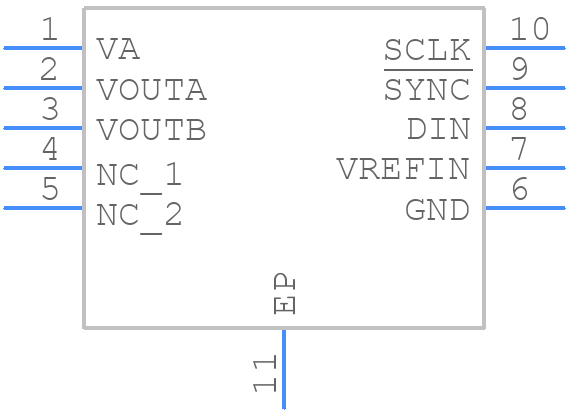

Use the download button to access the DAC102S085CISDX/NOPB schematic symbol, PCB footprint, and 3D model.
