DAC108S085CIMT/NOPB - Texas Instruments

Description: 10-Bit Micro Power OCTAL Digital-to-Analog Converter with Rail-to-Rail Outputs

Download DAC108S085CIMT/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

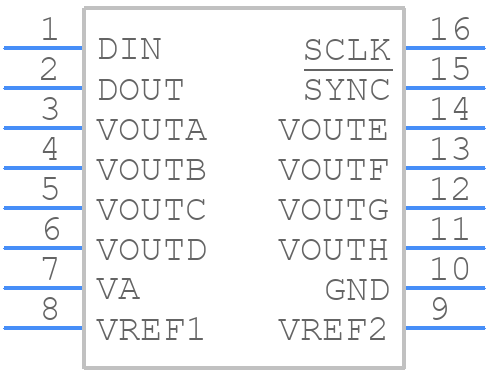

DAC108S085CIMT/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC108S085CIMT/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
DAC108S085CIMT/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

DAC108S085CIMT/NOPB Details

  • Manufacturer Part Number:

    DAC108S085CIMT/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.855 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DAC108S085CIMT/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference (VREF) and to decouple the VREF pin with a capacitor. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The DAC108S085 can handle clock frequencies up to 40 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal.
  • To minimize noise and glitches, it is recommended to use a low-pass filter on the output, decouple the power supplies, and use a low-noise voltage reference. Additionally, the digital inputs should be properly terminated and the clock signal should be clean and stable.
  • Yes, the DAC108S085 can be used in a ratiometric configuration, where the output voltage is proportional to the ratio of the reference voltage to the supply voltage. This can be useful in applications where the output voltage needs to track changes in the supply voltage.
