DAC124S085CIMMX/NOPB - Texas Instruments

Description: 12-Bit Micro Power QUAD Digital-to-Analog Converter with Rail-to-Rail Output

Download DAC124S085CIMMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

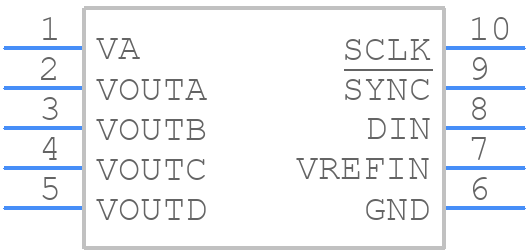

DAC124S085CIMMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC124S085CIMMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
DAC124S085CIMMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

DAC124S085CIMMX/NOPB Details

  • Manufacturer Part Number:

    DAC124S085CIMMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    7

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Seated Height-Max:

    1.09 mm

  • Settling Time-Max:

    8.5 µs

  • Settling Time-Nom (tstl):

    8.5 µs

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC124S085CIMMX/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines with adequate capacitors. Additionally, ensure that the output load is within the specified range and that the output voltage is not exceeded.
  • The maximum output current of the DAC124S085 is 5 mA. Exceeding this current may cause damage to the device or affect its accuracy.
  • During power-down or reset, the DAC124S085's output may go into a high-impedance state or output a undefined voltage. To prevent this, use an external buffer or op-amp to hold the output voltage stable, or add a pull-down resistor to ensure a defined output state.
  • To minimize noise and ensure accurate operation, it's recommended to keep the analog and digital signal paths separate, use a solid ground plane, and keep the power supply lines away from the analog output. Additionally, use short and direct connections to the output pin to minimize parasitic inductance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC124S085CIMMX/NOPB Overview

Use the download button to access the DAC124S085CIMMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC12, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
