DAC1280IPWR - Texas Instruments

Description: Very Low Distortion Digital-to-Analog Converter for Seismic Applications

Download DAC1280IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

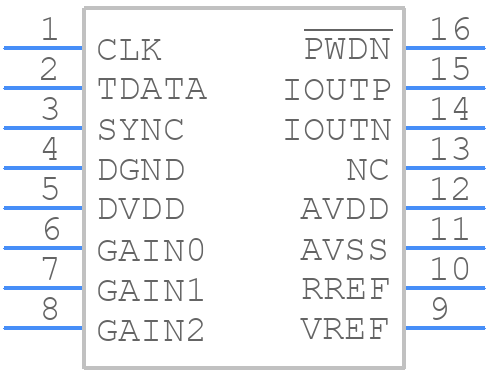

DAC1280IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC1280IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
DAC1280IPWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

DAC1280IPWR Details

  • Manufacturer Part Number:

    DAC1280IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.775 V

  • Analog Output Voltage-Min:

    -0.375 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -2.5 V

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.256 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    100 µs

  • Settling Time-Nom (tstl):

    100 µs

  • Supply Current-Max:

    3.7 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DAC1280IPWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage range of the DAC1280IPWR is dependent on the VREF input. To ensure accurate output voltages, VREF should be set to a voltage that allows the desired output range to be achieved. For example, if a 0-5V output range is desired, VREF should be set to 5V.
  • Clock jitter can affect the DAC1280IPWR's performance by introducing noise and distortion into the output signal. To minimize the effects of clock jitter, a low-jitter clock source should be used, and the clock signal should be properly filtered and decoupled.
  • To ensure accurate output voltages when using the DAC1280IPWR in a multiplexed configuration, the output voltage should be allowed to settle before switching to the next channel. The settling time can be calculated based on the output capacitance and the desired settling accuracy.
  • The recommended layout and routing for the DAC1280IPWR's digital inputs is to keep the digital traces short and away from analog signals, use a solid ground plane, and avoid crossing digital signals over analog signals. This helps to minimize digital noise and ensure accurate device operation.
