The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage range of the DAC1282AIPW is dependent on the VREF input. To ensure accurate output voltages, VREF should be set to a voltage that allows the desired output range. For example, if the desired output range is 0-5V, VREF should be set to 5V.
Clock jitter can affect the DAC1282AIPW's performance by introducing noise and distortion into the output signal. To minimize the effects of clock jitter, use a high-quality clock source with low jitter, and consider using a clock jitter attenuator or filter.
To ensure accurate output voltages when using the DAC1282AIPW in a multiplexed configuration, ensure that the output voltage settles within the specified settling time before switching to the next channel. Additionally, consider using a output buffer or amplifier to reduce the output impedance and improve the output voltage accuracy.
The recommended layout and routing for the DAC1282AIPW involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces between the DAC and the output pins. Additionally, consider using a shielded cable or twisted pair for the output signal to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC1282AIPW Overview

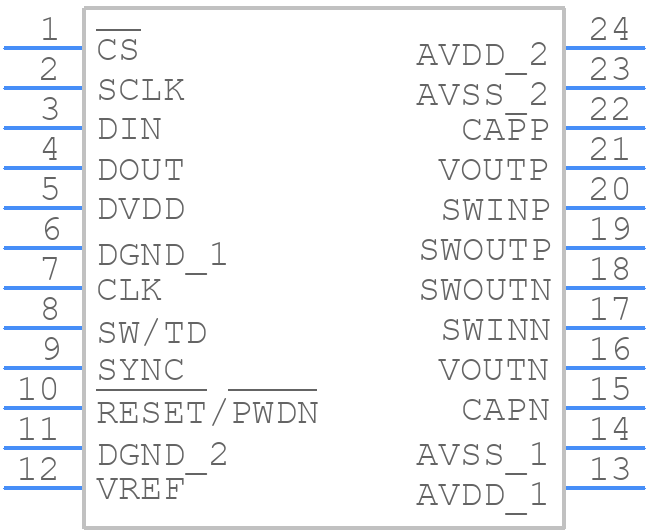

Use the download button to access the DAC1282AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC12,
or try a keyword search, such as Digital to Analog Converters
