The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage range of the DAC1282AIPWR is dependent on the VREF input voltage. To ensure accurate output voltage, VREF should be set to a voltage that allows the desired output voltage range. For example, if the desired output voltage range is 0-5V, VREF should be set to 5V.
Clock jitter can affect the DAC1282AIPWR's performance by introducing noise and distortion in the output signal. To minimize the effects of clock jitter, it is recommended to use a high-quality clock source with low jitter and to ensure that the clock signal is properly terminated and filtered.
To ensure data integrity in a noisy environment, it is recommended to use differential signaling for the digital inputs, and to implement error detection and correction mechanisms, such as CRC or checksum, in the digital interface.
The recommended layout and routing for the DAC1282AIPWR involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length and impedance of the signal traces. It is also recommended to use a decoupling capacitor between VCC and GND, and to place the DAC1282AIPWR close to the analog signal source.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC1282AIPWR Overview

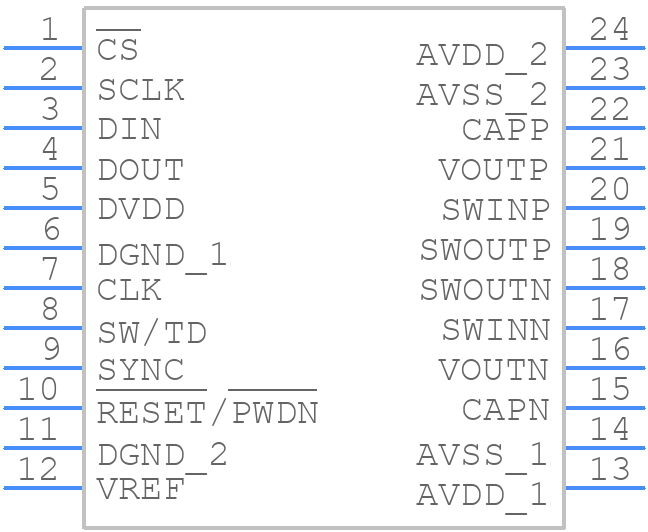

Use the download button to access the DAC1282AIPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC12,
or try a keyword search, such as Digital to Analog Converters
