DAC43204RTER - Texas Instruments

Description: Digital to Analog Converters - DAC Four-channel, 8-bit, VOUT and IOUT smart DAC with I C, SPI and Hi-Z out during power off

Download DAC43204RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

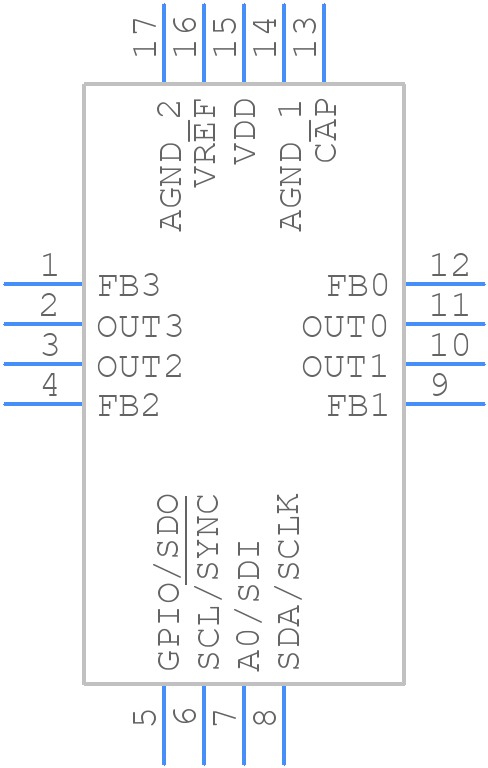

DAC43204RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC43204RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE0016C
click to zoom
3D Models
DAC43204RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE0016C
click to zoom

DAC43204RTER Details

  • Manufacturer Part Number:

    DAC43204RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    DAC 8BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.390625%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DAC43204RTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the digital supply (VDD) before the analog supply (VREF). This ensures that the internal circuitry is properly initialized and prevents any potential latch-up conditions.
  • To ensure accurate output voltage levels, it is essential to use a high-quality external reference voltage (VREF) and to decouple the analog supply (VREF) and digital supply (VDD) with suitable capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The maximum output current capability of the DAC43204RTER is 5mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • To implement a bipolar output voltage range, an external amplifier circuit is required. The DAC output can be connected to a non-inverting amplifier with a gain of -1, which will invert the output voltage and provide a bipolar range.
  • The settling time of the DAC43204RTER is typically around 10μs. This means that the output voltage may take up to 10μs to stabilize after a code change. System designers should ensure that their system can accommodate this settling time to avoid any potential errors or inaccuracies.
