DAC43401DSGT - Texas Instruments

Description: Digital to Analog Converters - DAC 8-bit, 1-channel, smart DAC with NVM, buffered voltage output and I2C interface 8-WSON -40 to 125

Download DAC43401DSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

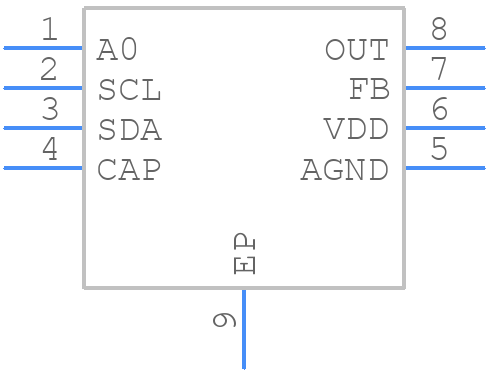

DAC43401DSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC43401DSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A _ 2021
click to zoom
3D Models
DAC43401DSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A _ 2021
click to zoom

DAC43401DSGT Details

  • Manufacturer Part Number:

    DAC43401DSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-07-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DAC43401DSGT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VDDIO). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be filtered using a low-pass filter to remove any high-frequency noise.
  • The maximum output current of the DAC43401 is 10 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • The DAC43401 can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller sends the digital code to the DAC43401, which then converts it to an analog voltage output. Ensure that the microcontroller and DAC43401 have compatible voltage levels and communication protocols.
  • The settling time of the DAC43401 is typically around 10 μs, but it can vary depending on the output voltage, load capacitance, and other factors. It is essential to ensure that the output has settled before taking a measurement or using the output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC43401DSGT Overview

Use the download button to access the DAC43401DSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC43, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
