DAC43701DSGT - Texas Instruments

Description: Digital to Analog Converters - DAC Single-channel output voltage, 8-bit, smart DAC with GPIO trigger and function generator 8-WSON -40 to 125

Download DAC43701DSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

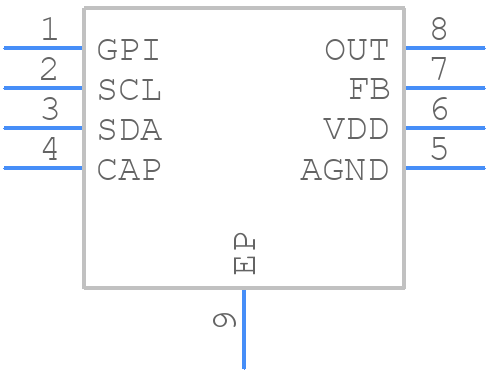

DAC43701DSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC43701DSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG (S-PWSON-N8)+
click to zoom
3D Models
DAC43701DSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG (S-PWSON-N8)+
click to zoom

DAC43701DSGT Details

  • Manufacturer Part Number:

    DAC43701DSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.390625%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.55 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DAC43701DSGT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current capability of the DAC43701 is 10 mA. However, it is recommended to limit the output current to 5 mA or less to ensure accurate voltage output and to prevent overheating.
  • To implement a voltage output range other than 0-5V or 0-10V, you can use an external amplifier or attenuator circuit to scale the output voltage. Alternatively, you can use a voltage reference other than the internal 2.5V or 5V reference to achieve the desired output range.
  • The settling time of the DAC43701 is typically around 10 μs. This means that the output voltage may take up to 10 μs to settle to its final value after a code change. In systems where fast settling time is critical, you may need to add additional circuitry or buffering to ensure accurate voltage output.
