DAC53202RTER - Texas Instruments

Description: Digital to Analog Converters - DAC 10-bit 2-channel voltage/current output smart DAC with Hi-Z, EEPROM and waveform generator 16-WQFN -40 to 125

Download DAC53202RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

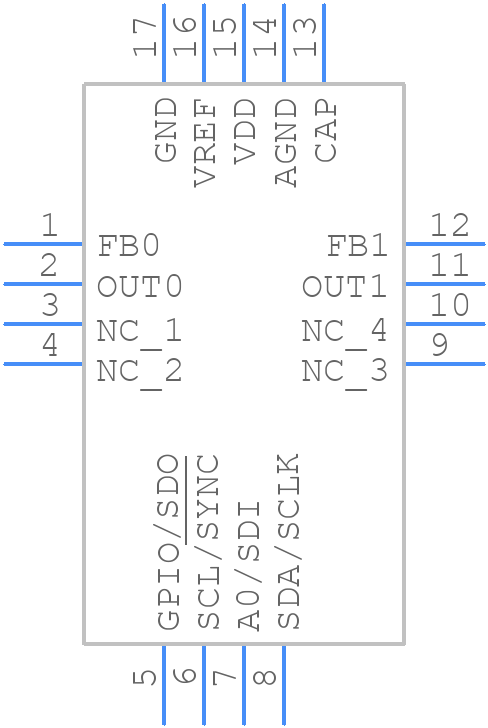

DAC53202RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC53202RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE0016C_2024
click to zoom
3D Models
DAC53202RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE0016C_2024
click to zoom

DAC53202RTER Details

  • Manufacturer Part Number:

    DAC53202RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.09765%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC53202RTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures that the internal reference voltage is stable before the DAC starts operating.
  • The DAC53202RTER has a rail-to-rail output stage, but it's not guaranteed to swing all the way to the supply rails. To ensure maximum output range, use an external op-amp to buffer the output and provide additional gain if needed.
  • The maximum update rate for the DAC53202RTER is 2.5 MSPS (million samples per second). However, this rate may be limited by the digital interface and the system's clock frequency.
  • To minimize noise and glitches, use a low-pass filter on the output, and ensure that the digital inputs are properly synchronized with the clock signal. Additionally, use a stable and low-noise reference voltage and power supply.
  • Yes, the DAC53202RTER is designed for multi-channel applications. It has a built-in channel sequencer that allows for easy configuration and control of multiple channels. However, the specific implementation details will depend on the system requirements and design.
