DAC53401DSGR - Texas Instruments

Description: Digital to Analog Converters - DAC 10-bit 1-channel DAC with NVM, buffered voltage output and I2C interface 8-WSON -40 to 125

Download DAC53401DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

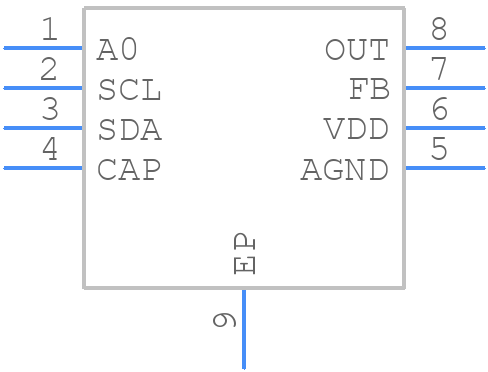

DAC53401DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC53401DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
DAC53401DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

DAC53401DSGR Details

  • Manufacturer Part Number:

    DAC53401DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-11-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DAC53401DSGR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines (VDD) with adequate capacitors. Additionally, ensure that the output load is within the recommended range to prevent output voltage droop.
  • The maximum output current capability of the DAC53401DSGR is 10 mA. Exceeding this limit may cause device damage or affect its performance.
  • During power-up and power-down, it is recommended to keep the digital inputs (SCLK, SDIN, and SYNC) in a high-impedance state or tied to a fixed logic level to prevent unwanted device operation or latch-up conditions.
  • To minimize noise and ensure proper device operation, it is recommended to separate analog and digital signal traces, use a solid ground plane, and keep sensitive analog signals away from noisy digital signals. Additionally, use short and direct connections for the output voltage and decoupling capacitors.
