The recommended power-up sequence is to power up the digital supply (VDD) first, followed by the analog supply (AVDD). This ensures that the digital circuitry is powered up before the analog circuitry, which helps to prevent any potential latch-up or damage to the device.
To ensure accurate voltage output, it is recommended to use a high-precision voltage reference, such as the REF5025 or REF5030, and to follow proper PCB layout and design guidelines to minimize noise and interference. Additionally, the DAC output should be buffered with an op-amp, such as the OPA333, to ensure a low-impedance output and to prevent loading effects.
The maximum update rate of the DAC53401DSGT is 1 MSPS (million samples per second). However, this rate can be limited by the interface used to communicate with the device, such as SPI or I2C. The actual update rate may be lower depending on the specific application and interface used.
When the DAC53401DSGT is in power-down mode, the device's power consumption is reduced to a minimum. To enter power-down mode, the PD pin should be pulled low. When in power-down mode, the DAC output is high-impedance, and the device's internal voltage reference is disabled. To exit power-down mode, the PD pin should be pulled high, and the device should be re-initialized according to the datasheet.
The recommended layout and routing for the DAC53401DSGT's analog and digital signals is to separate the analog and digital signals as much as possible, using separate layers or regions on the PCB. The analog signals should be routed close to the device, using short, direct traces, while the digital signals should be routed away from the device, using longer, shielded traces. Additionally, it is recommended to use a ground plane to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC53401DSGT Overview

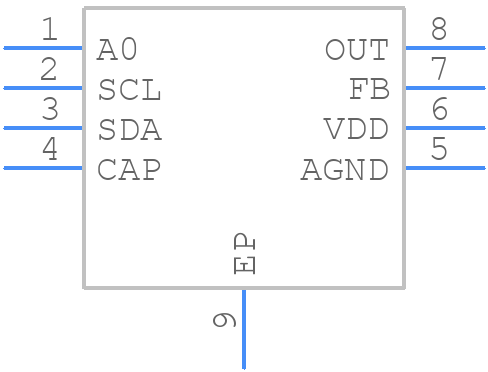

Use the download button to access the DAC53401DSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC53,
or try a keyword search, such as Digital to Analog Converters
