DAC60508ZCRTER - Texas Instruments

Description: 8-Channel, True 12-Bit, SPI, Voltage-Output DAC With Precision Internal Reference

Download DAC60508ZCRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

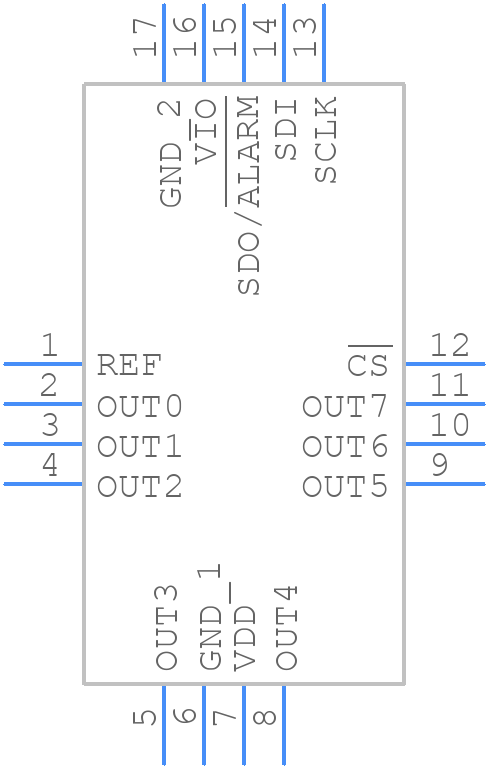

DAC60508ZCRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC60508ZCRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom
3D Models
DAC60508ZCRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom

DAC60508ZCRTER Details

  • Manufacturer Part Number:

    DAC60508ZCRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2018-08-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    11 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC60508ZCRTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The DAC60508 has an output voltage range of 0 to VREF. To ensure accurate output, the reference voltage (VREF) should be set to a value that allows the desired output range. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The settling time of the DAC60508 is typically around 10 μs. This means that the output voltage may take up to 10 μs to stabilize after a code change. Designers should ensure that their system can accommodate this settling time to achieve accurate output.
  • To minimize noise and glitches, use a low-noise power supply, decouple the power pins with capacitors, and use a low-pass filter on the output. Additionally, ensure that the digital inputs are properly terminated and that the device is operated within its recommended operating conditions.
  • Yes, the DAC60508 can be used in a ratiometric configuration, where the reference voltage (VREF) is derived from the supply voltage (VDD). This can simplify the design and reduce the number of external components required.
