DAC60508ZCRTET - Texas Instruments

Description: True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference

Download DAC60508ZCRTET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

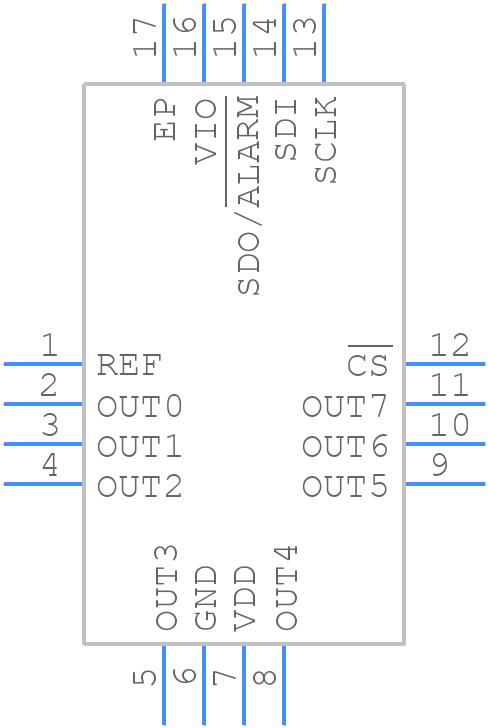

DAC60508ZCRTET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC60508ZCRTET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom
3D Models
DAC60508ZCRTET - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom

DAC60508ZCRTET Details

  • Manufacturer Part Number:

    DAC60508ZCRTET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2018-08-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    11 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC60508ZCRTET Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star-grounding scheme, using a solid ground plane, and keeping analog and digital signals separate to minimize noise. Additionally, use a low-ESR capacitor for the VREF pin and keep the output stage away from the input stage.
  • The DAC60508 has an internal calibration circuit that can be enabled by setting the CAL pin high. Follow the calibration procedure outlined in the datasheet, which involves applying a specific voltage to the VREF pin and monitoring the output voltage.
  • The DAC60508 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and follow the recommended PCB layout guidelines. Also, consider using thermal simulation tools to optimize the design.
  • The DAC60508 has a built-in POR and BOR circuitry that resets the device during power-up or brown-out conditions. Ensure that the power supply is stable and within the recommended voltage range, and consider adding external reset circuitry if necessary.
  • Follow proper PCB layout and shielding guidelines to minimize EMI and RFI. Use a shielded enclosure, and consider adding EMI filters or ferrite beads to the input/output lines. Ensure that the device is operated within the recommended frequency range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC60508ZCRTET Overview

Use the download button to access the DAC60508ZCRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
