The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage range of the DAC61404RHBR is dependent on the VREF input voltage. The output voltage range is 0 to VREF, so ensure that VREF is set to the desired maximum output voltage. Additionally, consider using an output buffer or amplifier if the output current or voltage requirements exceed the DAC's capabilities.
The DAC61404RHBR's performance is affected by temperature, with changes in offset error, gain error, and linearity. Ensure that the device is operated within the specified temperature range (-40°C to 125°C) and consider using temperature compensation or calibration techniques to minimize temperature-related errors.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding decoupling capacitors. Additionally, consider using a low-noise voltage reference and a high-PSRR (power supply rejection ratio) output buffer or amplifier.
The recommended layout and routing for the digital interface involves using controlled impedance traces, minimizing trace length and skew, and avoiding parallel traces that can cause crosstalk. Additionally, consider using a dedicated clock trace and terminating it with a series resistor to minimize reflections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC61404RHBR Overview

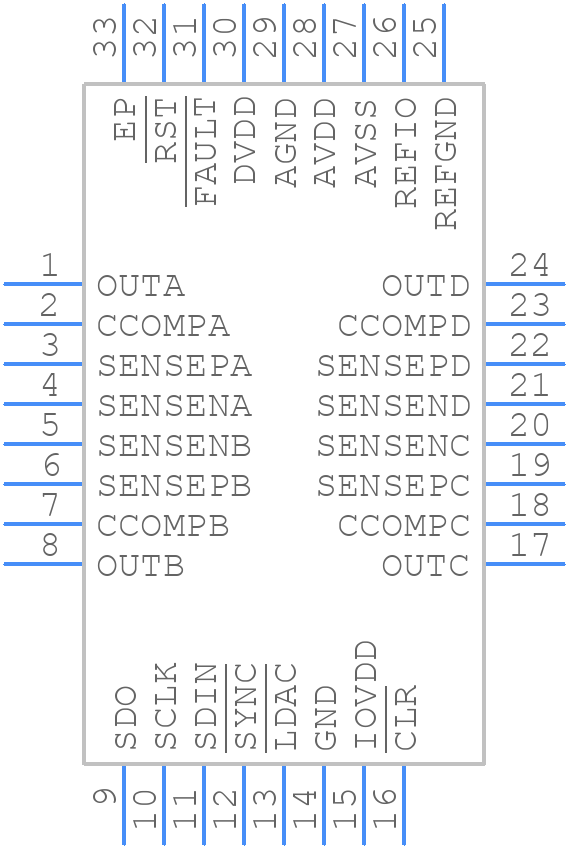

Use the download button to access the DAC61404RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC61,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
