The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage range of the DAC61408RHAT is dependent on the VREF input voltage. The output voltage range is 0 to VREF, so ensure that VREF is set to the desired maximum output voltage. Additionally, consider using an output buffer or amplifier if the output current or voltage swing requirements exceed the DAC's capabilities.
The DAC61408RHAT's performance is affected by temperature, with changes in offset error, gain error, and linearity. Ensure that the device is operated within the specified temperature range (-40°C to 125°C) and consider using temperature compensation or calibration techniques to minimize temperature-related errors.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding decoupling capacitors. Additionally, consider using a low-noise voltage reference and a high-PSRR (power supply rejection ratio) output buffer or amplifier.
The recommended layout and routing for the digital interface involves using controlled impedance traces, minimizing trace length and skew, and avoiding parallel traces that can cause crosstalk. Additionally, consider using a dedicated clock trace and terminating it with a series resistor to minimize reflections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC61408RHAT Overview

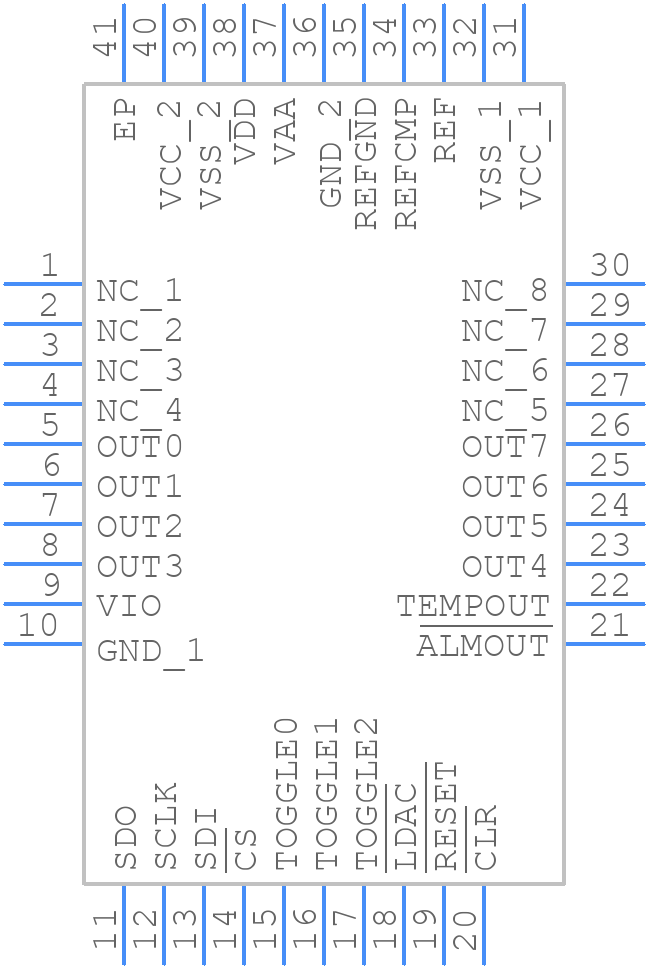

Use the download button to access the DAC61408RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC61,
or try a keyword search, such as Digital to Analog Converters
