DAC61416RHAR - Texas Instruments

Description: 16-channel 12-bit high-voltage output DAC with integrated internal reference

Download DAC61416RHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

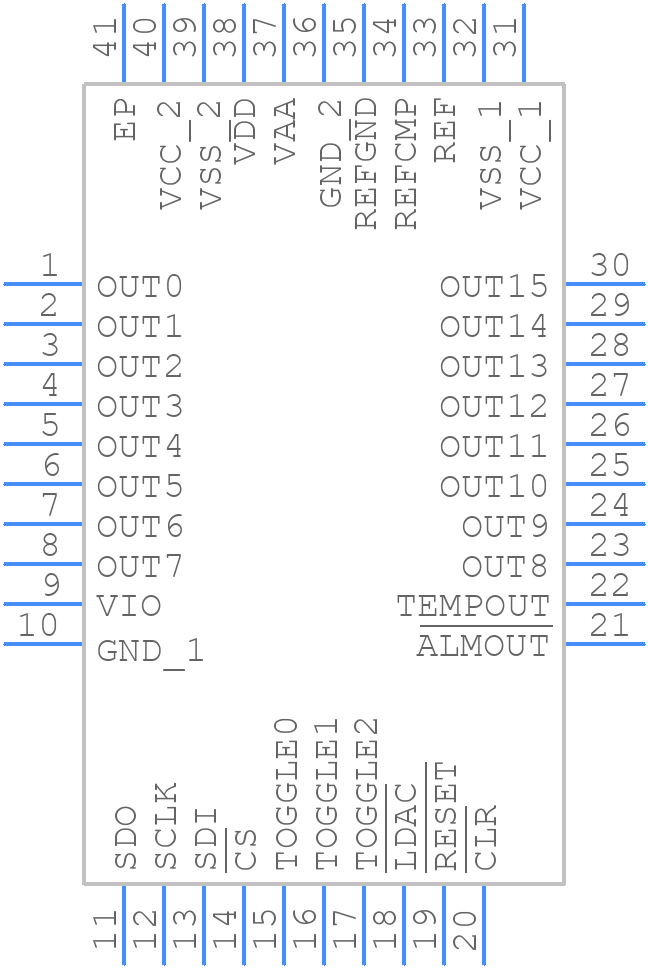

DAC61416RHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC61416RHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040C VQFN - 1 mm max height
click to zoom
3D Models
DAC61416RHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040C VQFN - 1 mm max height
click to zoom

DAC61416RHAR Details

  • Manufacturer Part Number:

    DAC61416RHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2018-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    20 V

  • Analog Output Voltage-Min:

    -20 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    12 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DAC61416RHAR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supply (DVDD). This ensures that the analog and digital circuits are properly initialized.
  • The output voltage range of the DAC61416RHAR is dependent on the reference voltage (VREF) and the gain setting. Ensure that the output voltage range is within the specified limits to avoid saturation or clipping.
  • Temperature affects the DAC61416RHAR's performance, particularly its gain error, offset error, and linearity. Ensure that the device is operated within the specified temperature range (-40°C to 125°C) for optimal performance.
  • To minimize noise and distortion, use a low-noise power supply, ensure proper grounding and shielding, and use a high-quality output filter. Additionally, consider using a differential output configuration to reduce common-mode noise.
  • Follow good PCB design practices, such as separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and widths. Ensure that the DAC's output is properly terminated and that the reference voltage is well-bypassed.
