DAC63004RTER - Texas Instruments

Description: • Programmable voltage or current outputs with flexible configuration: – Voltage outputs: • 1 LSB INL and DNL (10-bit) • Gains of 1x, 1.5x, 2x, 3x, and 4x – Current outputs: • 1 LSB INL and DNL (8-bit) • Unipolar and bipolar output range options from 25 μA to 250 μA • 35-μA/channel IDD in voltage-output mode • Programmable comparator mode for all channels • High-impedance output when VDD is off • High-impedance and resistive pulldown powerdown modes

Download DAC63004RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

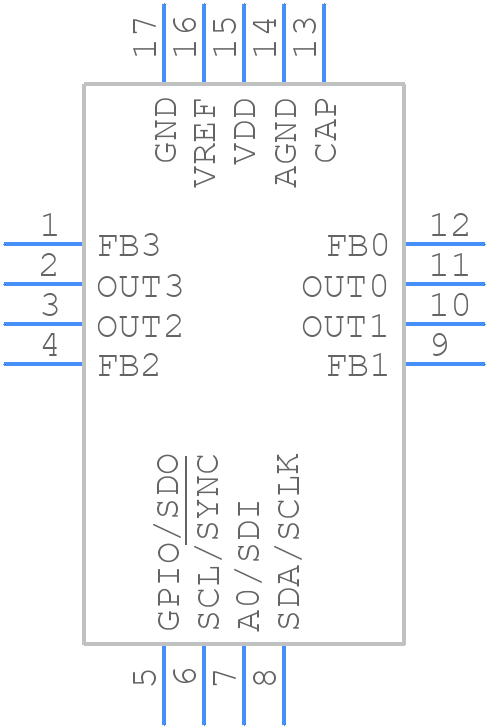

DAC63004RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC63004RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE0016C
click to zoom
3D Models
DAC63004RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE0016C
click to zoom

DAC63004RTER Details

  • Manufacturer Part Number:

    DAC63004RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.09765%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DAC63004RTER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the DAC63004RTER's application note (SLAA725) that recommends a star-ground configuration, separate analog and digital grounds, and careful routing of sensitive signals to minimize noise and ensure optimal performance.
  • The DAC63004RTER has a built-in calibration feature that can be accessed through the SPI interface. The calibration process involves writing specific codes to the device's registers to adjust the gain and offset of the DAC. Texas Instruments provides a calibration guide in the device's user guide (SLAU445) that outlines the step-by-step process.
  • The maximum output current of the DAC63004RTER is 25 mA per channel. To ensure that this limit is not exceeded, the output current should be limited using external resistors or current-limiting devices. Additionally, the device's output voltage should be monitored to prevent overvoltage conditions.
  • The DAC63004RTER has a SYNC pin that can be used to synchronize multiple devices. By connecting the SYNC pins of multiple devices together and driving them with a common clock signal, the devices can be synchronized to update their output voltages simultaneously.
  • The recommended power-up sequence for the DAC63004RTER is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC), and finally the clock signal. This sequence ensures that the device powers up correctly and prevents damage or incorrect operation.
