DAC6311IDCKRG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 10B Sgl Ch DAC w/ SPI

Download DAC6311IDCKRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

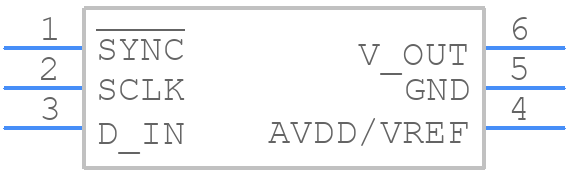

Symbol
DAC6311IDCKRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC6311IDCKRG4 - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DCK (R-PDSO-G6)
click to zoom
3D Models
DAC6311IDCKRG4 - Texas Instruments - 3D model - SOT23 (6-Pin) - DCK (R-PDSO-G6)
click to zoom

DAC6311IDCKRG4 Details

  • Manufacturer Part Number:

    DAC6311IDCKRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.083 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

DAC6311IDCKRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the DAC6311 datasheet, section 10.1. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and achieve optimal performance.
  • The DAC6311IDCKRG4 has an internal POR and BOR circuitry. To handle these reset events, ensure that your system design includes a proper power-up sequence, and consider using an external reset controller or supervisor IC to manage the reset signals.
  • The DAC6311IDCKRG4 can source up to 5 mA of output current per channel. However, it's recommended to limit the output current to 3 mA or less to ensure optimal performance and minimize power consumption.
  • The DAC6311IDCKRG4 does not require calibration. It has an internal calibration circuit that ensures accurate performance over temperature and voltage variations. However, it's essential to follow the recommended layout and routing guidelines to minimize errors.
  • The DAC6311IDCKRG4 can operate with a clock frequency up to 50 MHz. However, the recommended clock frequency is between 10 MHz to 20 MHz for optimal performance and to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC6311IDCKRG4 Overview

Use the download button to access the DAC6311IDCKRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC63, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
