DAC63204RTER - Texas Instruments

Description: Digital to Analog Converters - DAC Four-channel, 12-bit, VOUT and IOUT smart DAC with I C, SPI and Hi-Z out during power off

Download DAC63204RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

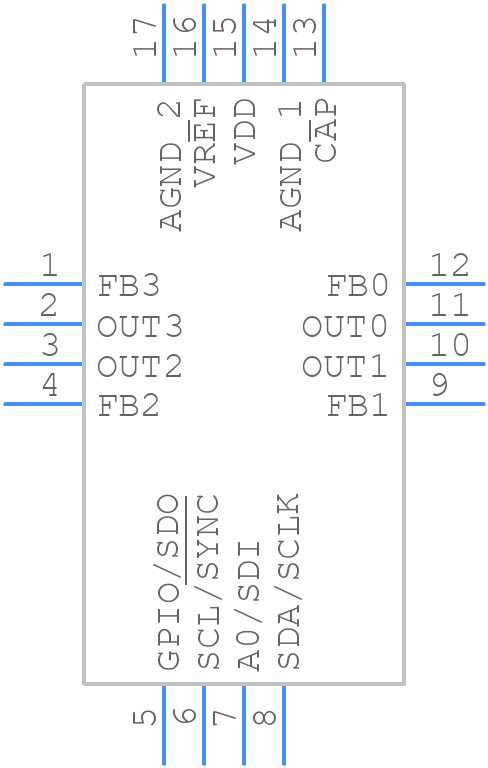

DAC63204RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC63204RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
DAC63204RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

DAC63204RTER Details

  • Manufacturer Part Number:

    DAC63204RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.09765625%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC63204RTER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the DAC63204RTEREVM evaluation module user's guide, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The DAC63204RTER does not require calibration, as it is a factory-calibrated device. However, users can perform a system-level calibration to compensate for any errors introduced by the surrounding circuitry or PCB layout.
  • The DAC63204RTER can drive up to 5mA of output current. To ensure that the output current does not exceed this limit, users should add a current-limiting resistor in series with the output pin and calculate the maximum allowed load impedance based on the output voltage and current requirements.
  • The DAC63204RTER has a SYNC pin that allows users to synchronize multiple devices. By connecting the SYNC pins of multiple devices together and driving them with a common clock signal, users can ensure simultaneous updates and minimize skew.
  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply voltage (VCC). The power-down sequence should be reversed. Additionally, users should ensure that the digital inputs are in a valid state before applying power to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC63204RTER Overview

Use the download button to access the DAC63204RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC63, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
