DAC63204RTET - Texas Instruments

Description: Digital to Analog Converters - DAC 12-bit 4-channel voltage/current output smart DAC with Hi-Z, EEPROM and waveform generator 16-WQFN -40 to 125

Download DAC63204RTET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

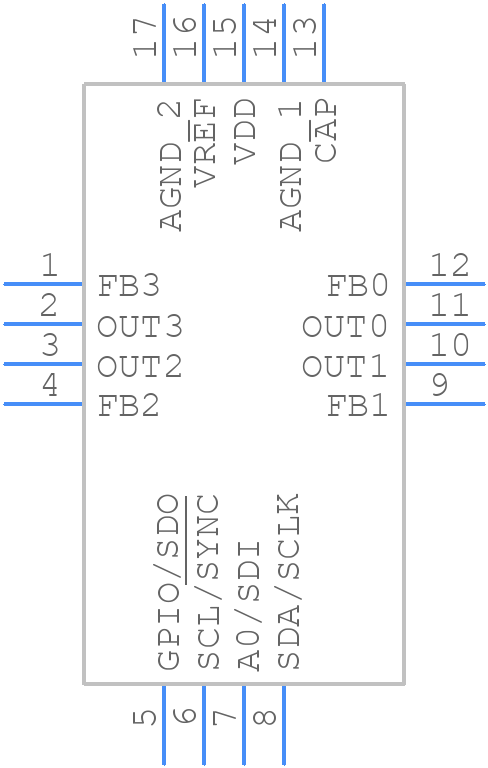

DAC63204RTET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC63204RTET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE0016C_2024
click to zoom
3D Models
DAC63204RTET - Texas Instruments - 3D model - Quad Flat No-Lead - RTE0016C_2024
click to zoom

DAC63204RTET Details

  • Manufacturer Part Number:

    DAC63204RTET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.09765625%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DAC63204RTET Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time can be minimized by using a low-pass filter at the output, and by ensuring that the output load is properly terminated. Additionally, the device's internal settling time can be reduced by using a higher output update rate.
  • The maximum output current that the DAC63204RTET can drive is 10mA. However, it's recommended to limit the output current to 5mA or less to ensure device reliability and to prevent overheating.
  • To implement a bipolar output voltage range, you can use an external amplifier circuit to invert and scale the output voltage. Alternatively, you can use a voltage translator circuit to shift the output voltage range to the desired bipolar range.
  • The DAC63204RTET's performance is affected by temperature, with changes in output voltage, gain error, and offset error. However, the device is designed to operate over a wide temperature range (-40°C to 125°C), and its performance is guaranteed over this range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC63204RTET Overview

Use the download button to access the DAC63204RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC63, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
