The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up or damage.
The DAC70004 has a rail-to-rail output stage, but it's not guaranteed to swing all the way to the supply rails. To ensure maximum output range, use an output buffer amplifier or a voltage follower to boost the output voltage.
The maximum clock frequency for the DAC70004 is 40 MHz. However, the actual achievable clock frequency may be limited by the specific application, PCB layout, and noise considerations.
To minimize noise and distortion, use a low-noise power supply, decouple the power pins with high-quality capacitors, and use a well-designed PCB layout with proper grounding and shielding. Additionally, consider using a output filter or a reconstruction filter to reduce high-frequency noise.
To ensure optimal performance, follow a star-grounding topology, keep analog and digital signals separate, and use short, direct traces for the output and reference pins. Avoid running digital signals near the output pins to minimize noise coupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70004IDMDT Overview

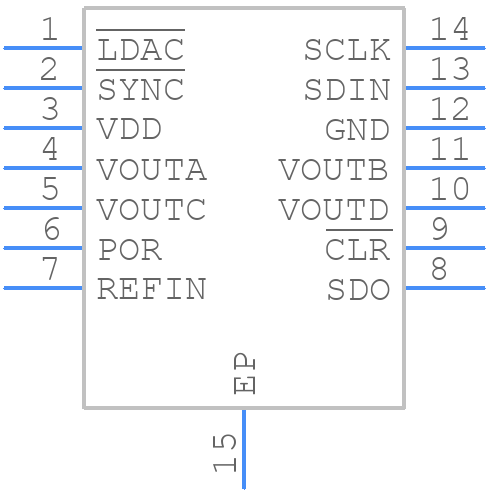

Use the download button to access the DAC70004IDMDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70,
or try a keyword search, such as Digital to Analog Converters
