DAC70004IPWR - Texas Instruments

Description: Digital to Analog Converters - DAC

Download DAC70004IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

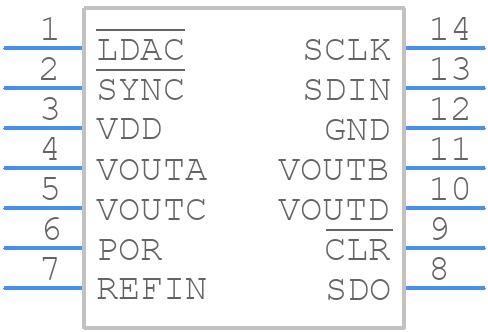

DAC70004IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC70004IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
DAC70004IPWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

DAC70004IPWR Details

  • Manufacturer Part Number:

    DAC70004IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2016-06-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.2 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    5.8 µs

  • Supply Current-Max:

    5.5 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DAC70004IPWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current capability of the DAC70004IPWR is 10 mA per channel. Exceeding this limit may cause the output voltage to droop or the device to overheat.
  • The digital input signals should be properly terminated and driven by a low-impedance source to prevent signal reflections and ensure reliable data transfer. Additionally, the input signals should be synchronized with the clock signal to prevent metastability issues.
  • The DAC70004IPWR's performance is affected by temperature, with the output voltage and gain error varying with temperature. The device is specified to operate over a temperature range of -40°C to 125°C, and the user should consider these variations when designing their system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC70004IPWR Overview

Use the download button to access the DAC70004IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
