Description:Digital to Analog Converters - DAC True 14-bit, 1-ch, SPI/I2C, voltage-output DAC in WSON package with precision internal reference 8-WSON -40 to 125
Texas Instruments provides a layout and routing guide in the application note SLAA725, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The DAC70501MDQFT has a built-in calibration feature that can be accessed through the SPI interface. The calibration process involves writing specific registers to adjust the DAC's offset and gain. Refer to the datasheet and the application note SLAA727 for detailed calibration procedures.
The maximum output current of the DAC70501MDQFT is 25 mA. The output voltage is affected by the load current, and the device can maintain its specified accuracy up to the maximum output current. However, excessive load current can cause the output voltage to droop, so it's essential to ensure the load current is within the specified limits.
The POR and BOR features of the DAC70501MDQFT are designed to ensure the device powers up in a known state. The POR circuitry resets the device when the power supply voltage falls below a certain threshold, while the BOR circuitry resets the device when the power supply voltage falls below a certain threshold for a specified duration. To handle these features, ensure that the power supply voltage is stable and within the specified range, and that the device is properly reset after power-up or brown-out conditions.
The DAC70501MDQFT has a thermal management strategy that involves thermal shutdown and thermal warning features. The device has a built-in thermal sensor that monitors the junction temperature, and if it exceeds a certain threshold, the device will shut down or issue a warning. To ensure optimal performance, it's essential to provide adequate heat sinking and thermal management to keep the junction temperature within the specified range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70501MDQFT Overview

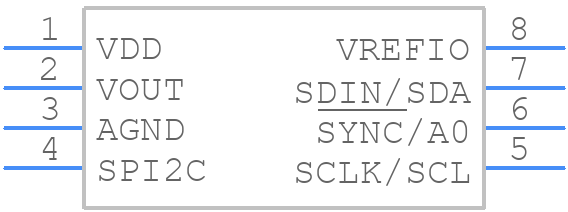

Use the download button to access the DAC70501MDQFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
