The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals (e.g., SCLK, SDIN, and SYNC). This ensures proper device operation and prevents potential latch-up conditions.
The output voltage settling time can be minimized by using a low-pass filter at the output, such as a 1 kΩ resistor and a 10 nF capacitor. Additionally, the device's internal settling time can be reduced by using a faster clock frequency and/or a lower output impedance.
The maximum output current that the DAC70501 can drive is 25 mA. However, it's recommended to limit the output current to 10 mA or less to ensure device reliability and prevent overheating.
To implement a bipolar output voltage range, you can use an external amplifier, such as an op-amp, to invert and scale the output voltage. Alternatively, you can use a voltage translator or a level shifter to shift the output voltage to the desired range.
The DAC70501's performance is affected by temperature, with the output voltage drift and gain error increasing with temperature. However, the device is designed to operate over a wide temperature range (-40°C to 125°C), and its performance is specified over this range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70501ZDGSR Overview

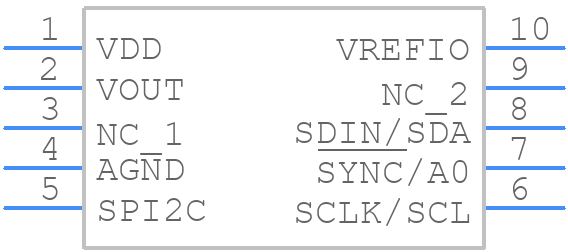

Use the download button to access the DAC70501ZDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70,
or try a keyword search, such as Digital to Analog Converters
