The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage settling time can be minimized by using a low-pass filter at the output, and by ensuring that the output impedance of the DAC is matched to the input impedance of the load. Additionally, the DAC70508 has a built-in output slew rate control feature that can be used to slow down the output voltage transition and reduce settling time.
The maximum output current that the DAC70508 can drive is 25mA. However, this current limit can be reduced depending on the output voltage and the load impedance. It's recommended to check the output current capability of the DAC for a specific application to ensure reliable operation.
The DAC70508 is a unipolar DAC, but it can be configured to provide a bipolar output voltage range by using an external amplifier and resistive network. The output voltage range can be shifted and scaled to achieve a bipolar output range, such as ±5V or ±10V.
The DAC70508's performance and accuracy can be affected by temperature variations. The device's output voltage drift, gain error, and offset error can change with temperature. It's recommended to consider the temperature range of the application and to use temperature compensation techniques, such as using a temperature sensor and adjusting the output voltage accordingly, to maintain the desired accuracy and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70508ZRTER Overview

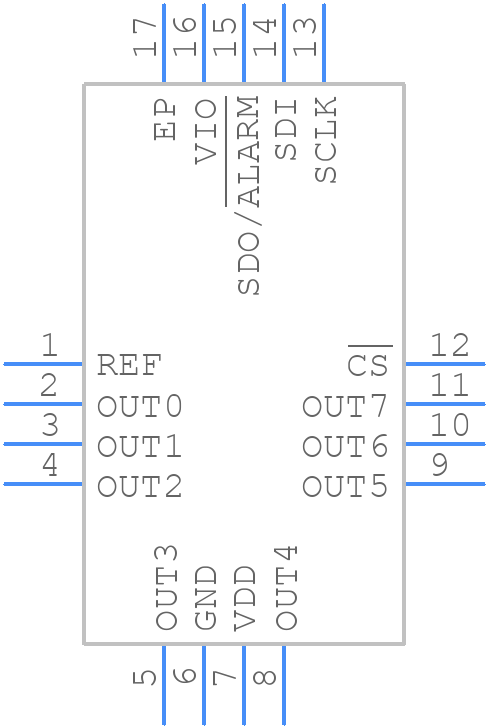

Use the download button to access the DAC70508ZRTER schematic symbol, PCB footprint, and 3D model.
