Texas Instruments recommends a star-ground topology, with the analog and digital grounds separated and connected at a single point. Keep the analog signal traces away from digital signal traces, and use a solid ground plane to reduce noise. Additionally, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the VOUT pin.
For unipolar supplies, connect the VOUT pin to a voltage divider or an op-amp to shift the output voltage range. For bipolar supplies, use an op-amp with a gain of -1 to invert the output voltage. Ensure the op-amp is rail-to-rail and has a sufficient bandwidth to handle the DAC's output frequency.
The maximum clock frequency for the DAC70508ZRTET is 40 MHz. The output data rate is determined by the clock frequency and the number of bits per sample. For example, at 40 MHz, the output data rate is approximately 20 MSPS (mega-samples per second) for 16-bit samples.
The DAC70508ZRTET does not have built-in digital filtering capabilities. However, you can implement digital filtering using an external microcontroller or FPGA. Use the DAC's serial interface to transmit the filtered data to the DAC, or use a separate digital filter IC.
Power up the VDD pin first, followed by the VREF pin. Then, apply the clock signal and digital input data. When powering down, reverse the sequence: remove the clock signal and digital input data, then power down the VREF pin, and finally the VDD pin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC70508ZRTET Overview

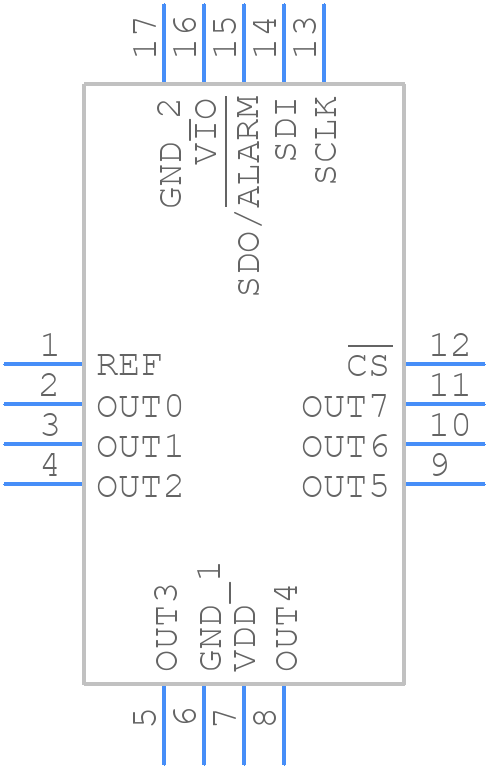

Use the download button to access the DAC70508ZRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC70,
or try a keyword search, such as Digital to Analog Converters
