DAC712UL - Texas Instruments

Description: Texas Instruments DAC712UL, 16 bit Parallel DAC, 100ksps, 28-Pin SOIC

Download DAC712UL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

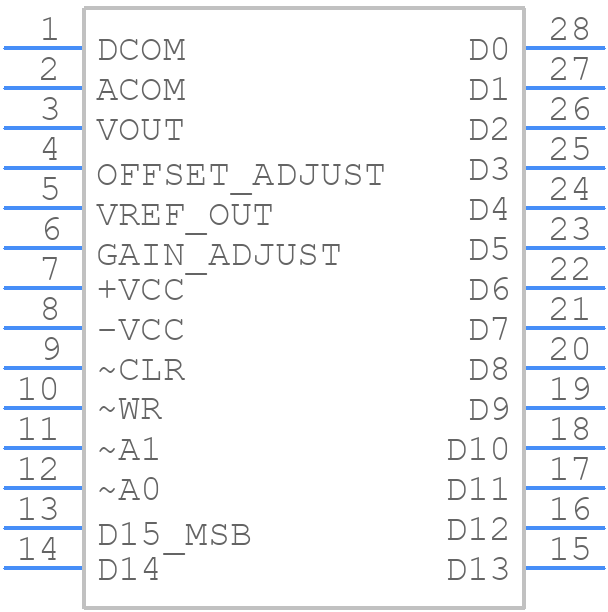

DAC712UL - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC712UL - Texas Instruments PCB footprint - Other - Other - SOIC127P1030X265-28N
click to zoom
3D Models
DAC712UL - Texas Instruments - 3D model - Other - SOIC127P1030X265-28N
click to zoom

DAC712UL Details

  • Manufacturer Part Number:

    DAC712UL

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DAC712UL Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC712UL is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to check the output current requirements of your application to ensure the DAC can supply enough current.
  • To ensure monotonicity, you need to use a specific coding scheme and ensure that the input code is incremented or decremented in a specific way. The datasheet provides guidelines on how to achieve monotonicity, but it's not immediately apparent. Consult the datasheet and application notes for more information.
  • The settling time of the DAC712UL is approximately 10μs to 1 LSB (least significant bit) accuracy. This is important to consider when designing your system, as it affects the overall response time of your application.
  • Yes, the DAC712UL can be used in a ratiometric configuration. This means that the output voltage is proportional to the reference voltage. This configuration is useful in certain applications, such as sensor interfaces. Consult the datasheet and application notes for more information.
  • The DAC712UL has a power-on reset (POR) circuit that ensures the DAC outputs a known state during power-up. To handle the POR, ensure that the VCC supply is stable and within the recommended operating range before applying a clock signal to the DAC. This ensures that the DAC outputs a valid voltage during power-up.
