DAC714P - Texas Instruments

Description: 16 bit D-A converter,DAC714P, DIL16,BP

Download DAC714P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

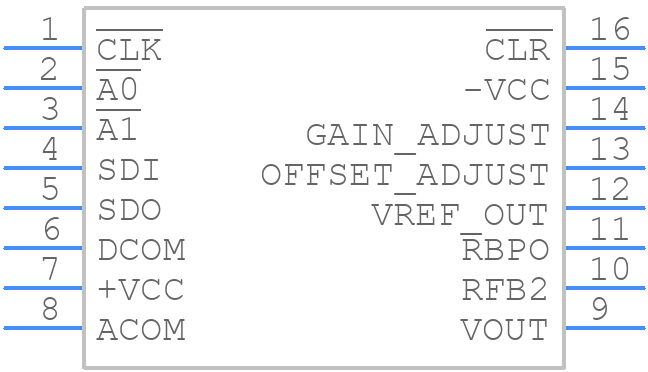

DAC714P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC714P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
DAC714P - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

DAC714P Details

  • Manufacturer Part Number:

    DAC714P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1996-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.086 MHz

  • Seated Height-Max:

    5.08 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DAC714P Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC714P is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to design your circuit to stay within this limit to avoid damaging the device.
  • To ensure monotonicity, you need to use a high-quality voltage reference and ensure that the input digital code is incremented or decremented in a monotonic manner. Additionally, you can use the DAC714P's built-in monotonicity correction feature by setting the appropriate configuration bits.
  • The settling time of the DAC714P is approximately 10μs. This means that after a code change, the output voltage takes around 10μs to settle to its final value. You should ensure that your system can accommodate this settling time to avoid errors or inaccuracies.
  • Yes, the DAC714P can be used in a ratiometric configuration. In this configuration, the reference voltage is derived from the power supply voltage, and the DAC output voltage is proportional to the power supply voltage. This can be useful in certain applications where a ratiometric output is required.
  • The DAC714P has a built-in POR and BOR feature that resets the device during power-up or brown-out conditions. To handle these features, you should ensure that your system can accommodate the reset pulse and that your firmware is designed to handle the reset sequence properly.
