DAC714U - Texas Instruments

Description: 16-Bit Digital-to-Analog Converter with Serial Data Interface

Download DAC714U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

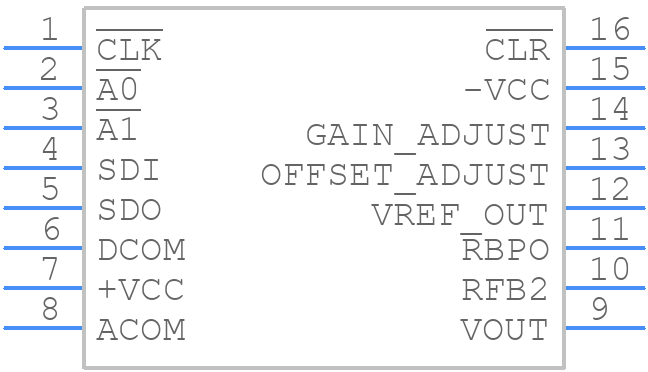

DAC714U - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC714U - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
DAC714U - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

DAC714U Details

  • Manufacturer Part Number:

    DAC714U

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.086 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DAC714U Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC714U is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to check the output current requirements of your application to ensure the DAC714U can handle it.
  • To ensure monotonicity, you need to use a 10-bit or 12-bit DAC configuration, and ensure that the input code is incremented or decremented in a monotonic sequence. Additionally, you can use the DAC714U's built-in monotonicity correction feature by setting the MC bit in the control register.
  • The settling time of the DAC714U is approximately 10μs for a full-scale output change. This means that the DAC output may take up to 10μs to stabilize after a code change. You should ensure that your application can accommodate this settling time to avoid errors or inaccuracies.
  • Yes, the DAC714U can be used in a ratiometric configuration, where the reference voltage is derived from the power supply voltage. However, you need to ensure that the power supply voltage is stable and well-regulated to maintain accuracy and linearity.
  • The DAC714U has a built-in POR and BOR feature that resets the device during power-up or brown-out conditions. You can use external circuitry to delay the POR and BOR signals to ensure that the device is properly reset and initialized before starting operation.
