- Part Number DAC714UG4
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW0016A
- Released Date Oct 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DAC714UG4 Details
-
Manufacturer Part Number:
DAC714UG4
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
DAC714UG4 Frequently Asked Questions (FAQs)
-
The recommended output capacitor value is 10nF to 100nF, depending on the specific application and noise requirements. A larger capacitor can help reduce noise, but may also increase settling time.
-
Follow Texas Instruments' recommended PCB layout guidelines, including keeping analog and digital traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, consider using a 4-layer PCB with a dedicated analog layer to reduce noise.
-
The maximum output current of the DAC714UG4 is 5mA. If the output current exceeds this limit, the output voltage may droop or become inaccurate. Ensure that the output current is within the specified limit to maintain accurate performance.
-
The DAC714UG4 has a built-in POR and BOR feature that resets the device during power-up or brown-out conditions. Ensure that your system design takes into account these features and provides a stable power supply to the device. You may need to add external circuitry to handle the reset signals and ensure proper system operation.
-
The recommended clock frequency for the DAC714UG4 is between 10MHz and 40MHz. A higher clock frequency can improve the device's settling time and throughput, but may also increase power consumption and noise. Choose a clock frequency that balances performance and power requirements for your specific application.
Trust Checks
Community Provided
System Verified
Community Approved
DAC714UG4 Overview

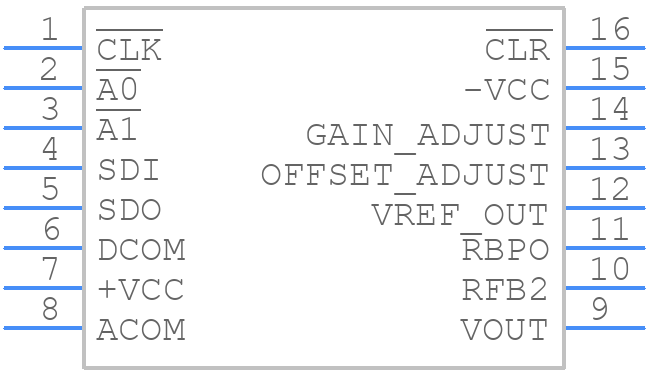

Use the download button to access the DAC714UG4 schematic symbol, PCB footprint, and 3D model.
