DAC7513N/250 - Texas Instruments

Description: Texas Instruments DAC7513N/250, 12 bit Serial DAC, 95ksps, 8-Pin SOT-23

Download DAC7513N/250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

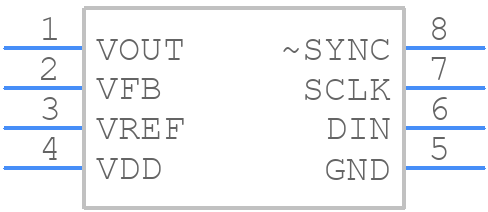

DAC7513N/250 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7513N/250 - Texas Instruments PCB footprint - Other - Other - SOT65P280X145-8N
click to zoom
3D Models
DAC7513N/250 - Texas Instruments - 3D model - Other - SOT65P280X145-8N
click to zoom

DAC7513N/250 Details

  • Manufacturer Part Number:

    DAC7513N/250

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.095 MHz

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

DAC7513N/250 Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7513N/250 is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to design your circuit to stay within this limit to avoid damaging the device.
  • To ensure accurate voltage output, make sure to use a stable reference voltage, keep the output impedance low, and minimize noise on the power supply lines. Additionally, consider using a low-pass filter to remove any high-frequency noise from the output.
  • The settling time of the DAC7513N/250 is approximately 10μs. This is the time it takes for the output voltage to settle within 1/2 LSB of the final value after a code change. This is important to consider when designing your system's timing and synchronization.
  • Yes, the DAC7513N/250 can be used with a single supply voltage. However, the output voltage range will be limited to 0V to VCC. If you need a bipolar output voltage range, you'll need to use a dual supply voltage.
  • The DAC7513N/250 has a standard SPI interface, which can be easily interfaced with most microcontrollers. Make sure to follow the SPI protocol and timing requirements specified in the datasheet, and use a suitable clock frequency to ensure reliable communication.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DAC7513N/250 Overview

Use the download button to access the DAC7513N/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
