DAC7513N/3K - Texas Instruments

Description: Low-Power Rail-To-Rail Output 12-Bit Serial Input DAC

Download DAC7513N/3K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

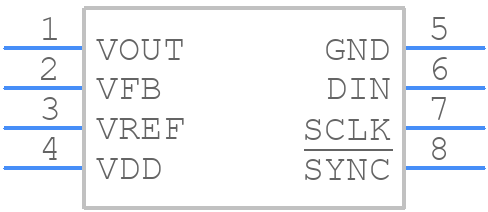

DAC7513N/3K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7513N/3K - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom
3D Models
DAC7513N/3K - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom

DAC7513N/3K Details

  • Manufacturer Part Number:

    DAC7513N/3K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.095 MHz

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

DAC7513N/3K Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7513N/3K is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to check the output current requirements of your application to ensure the DAC can supply enough current.
  • To ensure accurate voltage output, make sure to use a stable reference voltage, keep the analog and digital grounds separate, and use a low-pass filter to remove noise from the output. Additionally, consider using a voltage buffer amplifier to improve output impedance and reduce load sensitivity.
  • The settling time of the DAC7513N/3K is approximately 10μs. This is the time it takes for the output voltage to settle within 1/2 LSB of the final value after a code change. This is important to consider when designing your system's timing and synchronization.
  • Yes, the DAC7513N/3K can be used with a single supply voltage. However, the output voltage range will be limited to 0V to VCC-1.4V. If you need a bipolar output voltage range, you'll need to use a dual supply voltage.
  • The DAC7513N/3K can be interfaced with a microcontroller using a serial interface (SPI or I2C). Make sure to use a compatible communication protocol and clock frequency, and consider using a level shifter if the microcontroller's voltage levels are not compatible with the DAC's voltage levels.
