DAC7551IDRNRG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 12-Bit UltrLo Glitch Vltg Output Cnvtr

Download DAC7551IDRNRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

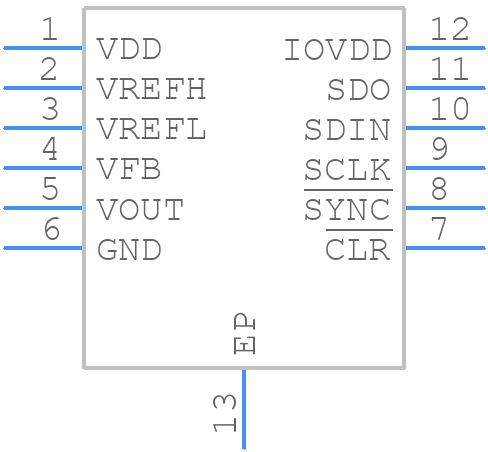

DAC7551IDRNRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7551IDRNRG4 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRN(R-PDSO-N12)
click to zoom
3D Models
DAC7551IDRNRG4 - Texas Instruments - 3D model - Small Outline No-lead - DRN(R-PDSO-N12)
click to zoom

DAC7551IDRNRG4 Details

  • Manufacturer Part Number:

    DAC7551IDRNRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    SON-12

  • Pin Count:

    12

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    0.6 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

DAC7551IDRNRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog output traces.
  • The DAC7551IDRNRG4 has an internal calibration circuit that trims the DAC's offset and gain errors. However, it's recommended to perform an external calibration using an external voltage reference and a precision resistor network to achieve optimal performance.
  • The maximum output current of the DAC7551IDRNRG4 is 5mA. If the output current exceeds this limit, the output voltage may droop or become unstable. It's recommended to use an external buffer amplifier or op-amp to increase the output current capability.
  • The POR and BOR features of the DAC7551IDRNRG4 ensure that the device resets to a known state during power-up or brown-out conditions. It's recommended to use an external capacitor to filter the power supply and ensure a clean power-up sequence.
  • The recommended clock frequency for the DAC7551IDRNRG4's serial interface is between 10kHz and 50MHz. The timing requirements include a minimum clock pulse width of 10ns, a minimum data setup time of 10ns, and a minimum data hold time of 10ns.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC7551IDRNRG4 Overview

Use the download button to access the DAC7551IDRNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
