Texas Instruments provides a layout and routing guide in the DAC7551 application note (SLAA443) that recommends keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and loops to reduce noise and ensure accurate performance.
To achieve a bipolar output, you can use an external op-amp to level-shift and amplify the output of the DAC7551IDRNTG4. Texas Instruments provides an example circuit in the DAC7551 datasheet (Figure 34) that shows how to achieve a ±5V output range using an op-amp and a few external resistors.
The maximum update rate of the DAC7551IDRNTG4 is 30 kSPS, and it affects the power consumption by increasing the current drawn from the supply voltage. According to the datasheet, the power consumption increases by approximately 1 mA for every 10 kSPS of update rate.
Texas Instruments recommends using a low-noise, low-dropout regulator (LDO) to power the DAC7551IDRNTG4, and decoupling the power supply lines with 10 μF and 0.1 μF capacitors. Additionally, a 100 nF capacitor should be placed between the VREF pin and ground to filter out noise on the reference voltage.
The DAC7551IDRNTG4 has a specified temperature range of -40°C to 125°C, and its accuracy and linearity are affected by temperature. According to the datasheet, the integral nonlinearity (INL) and differential nonlinearity (DNL) specifications degrade by approximately 1 LSB/°C. It is recommended to use temperature compensation or calibration to maintain accuracy and linearity over the operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7551IDRNTG4 Overview

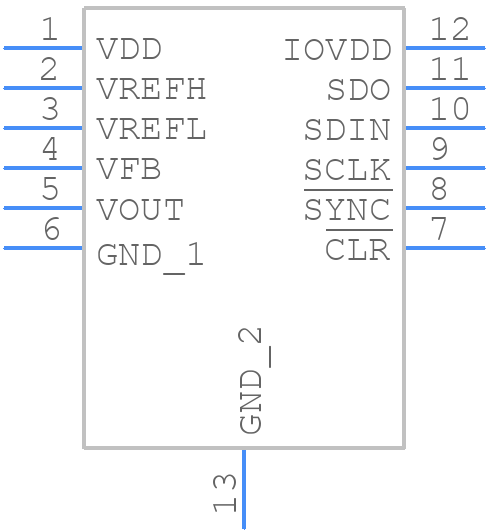

Use the download button to access the DAC7551IDRNTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75,
or try a keyword search, such as Digital to Analog Converters
