Texas Instruments recommends a star-ground topology, with the DAC's analog and digital grounds connected at a single point. Additionally, keep the analog and digital signal traces separate, and use a solid ground plane to reduce noise and crosstalk.
To achieve a bipolar output, you can use an external op-amp to amplify and shift the DAC's output voltage. For example, you can use an inverting amplifier configuration with a gain of -1 to convert the 0V to VREF output to a -VREF to +VREF output.
The maximum update rate of the DAC7553IRGTR is 30 MSPS. However, the output settling time is dependent on the output capacitance and resistance. To achieve the fastest settling time, use a low-ESR capacitor and a low-resistance output impedance. The datasheet provides a settling time vs. output capacitance graph to help with design decisions.
The DAC7553IRGTR's internal reference voltage is trimmed to ensure accuracy at 25°C. To maintain accuracy over temperature and time, use a high-quality external reference voltage source, such as the REF5025, and connect it to the DAC's VREF pin. This will override the internal reference and provide a more stable and accurate voltage reference.
To prevent damage or incorrect operation, power up the DAC7553IRGTR in the following sequence: VCC, VREF, and then the digital inputs. When powering down, reverse the sequence: digital inputs, VREF, and then VCC. This ensures that the DAC's internal circuitry is properly initialized and shut down.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7553IRGTR Overview

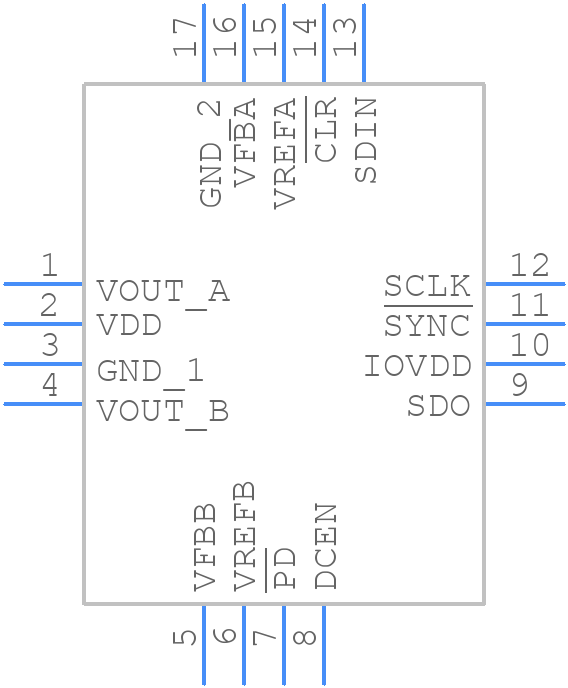

Use the download button to access the DAC7553IRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC75,
or try a keyword search, such as Digital to Analog Converters
