DAC7554IDGSG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - DAC7554IDGSG4 - Digital to Analogue Converter, 12 bit, 1 MSPS, Serial, 2.7V to 5.5V, SOP, 10 Pins

Download DAC7554IDGSG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

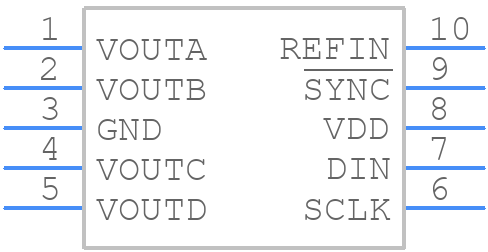

Symbol
DAC7554IDGSG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7554IDGSG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
DAC7554IDGSG4 - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

DAC7554IDGSG4 Details

  • Manufacturer Part Number:

    DAC7554IDGSG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    GREEN, PLASTIC, MSOP-10

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    7

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    5 µs

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC7554IDGSG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly initialized and avoids any potential latch-up or damage to the device.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to minimize load current and ensure stability.
  • The DAC7554 can sink or source up to 5mA of output current. However, it is recommended to limit the output current to 2mA or less to ensure accurate voltage output and to prevent overheating of the device.
  • To implement a voltage output range other than 0-5V, you can use an external amplifier or attenuator circuit to scale the output voltage. For example, you can use an op-amp with a gain of 2 to double the output voltage range to 0-10V.
  • The DAC7554's performance is affected by temperature, with the output voltage accuracy and linearity degrading at higher temperatures. It is essential to ensure that the device operates within its specified temperature range (-40°C to 125°C) and to consider temperature compensation or calibration if high accuracy is required.
