DAC7563TDGST - Texas Instruments

Description: Texas Instruments DAC7563TDGST, 2-Channel Serial DAC, 10-Pin VSSOP

Download DAC7563TDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

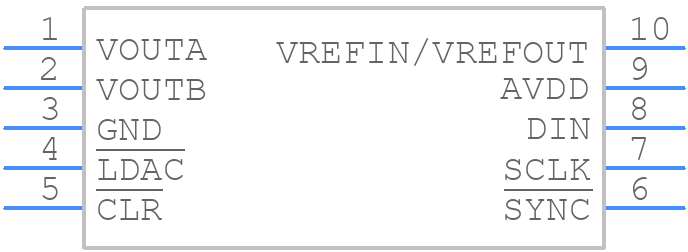

DAC7563TDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7563TDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
DAC7563TDGST - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

DAC7563TDGST Details

  • Manufacturer Part Number:

    DAC7563TDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.1 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC7563TDGST Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface (SCL and SDA). This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time can be minimized by using a capacitor (typically 10nF to 100nF) between the output pin and GND. This helps to filter out high-frequency noise and ensures a stable output voltage.
  • The maximum output current of the DAC7563 is 5mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • To ensure accurate voltage output, the external reference voltage should be stable and noise-free. A low-pass filter or a voltage regulator can be used to condition the reference voltage. Additionally, the reference voltage should be within the specified range (1.2V to 5.5V) and should not exceed the maximum rating.
  • The internal pull-up resistors on the SCL and SDA pins are used to pull the lines high when they are not being driven by the master device. This helps to prevent bus contention and ensures reliable communication.
