DAC7614PB - Texas Instruments

Description: Digital to Analog Converters - DAC Quad Ser In 12-Bit Voltage Output

Download DAC7614PB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

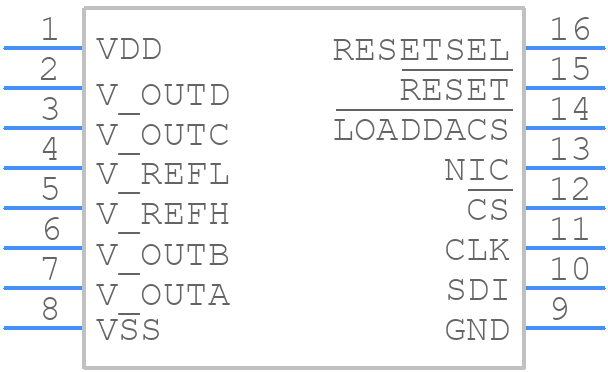

DAC7614PB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7614PB - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
DAC7614PB - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

DAC7614PB Details

  • Manufacturer Part Number:

    DAC7614PB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DAC7614PB Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7614PB is 5mA. This is not explicitly stated in the datasheet, but it can be inferred from the output impedance and voltage range specifications.
  • To ensure monotonicity, it is recommended to use a clock frequency of at least 10 times the update rate, and to use a stable and low-noise power supply. Additionally, the DAC7614PB has a built-in monotonicity feature that can be enabled by setting the MON bit in the control register.
  • The settling time of the DAC7614PB is typically around 10-15 microseconds, but this can vary depending on the output voltage range and the load capacitance. It is recommended to consult the datasheet and application notes for more detailed information.
  • Yes, the DAC7614PB can be used with a single 3.3V power supply. However, the output voltage range will be limited to 0-2.5V, and the device may not be able to achieve its full 12-bit resolution. It is recommended to use a dual power supply (e.g. +5V and -5V) for optimal performance.
  • The DAC7614PB can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller can send data to the DAC7614PB using the serial interface, and the DAC7614PB will convert the digital data to an analog output voltage. It is recommended to consult the datasheet and application notes for more detailed information on the interface protocol and timing.
