The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device operates reliably.
To ensure accurate voltage output, it is essential to use a high-quality voltage reference, such as the Texas Instruments REF5025. Additionally, the output voltage should be buffered with an op-amp, such as the OPA277, to minimize output impedance and ensure stability.
The maximum output current of the DAC7615 is 5mA. Exceeding this current limit can cause the output voltage to droop or the device to overheat. If higher output currents are required, an external buffer amplifier should be used.
The DAC7615 can be interfaced with a microcontroller using a 3-wire serial interface (SPI). The microcontroller should be configured as a master, and the DAC7615 as a slave. The microcontroller should send the data to be converted to the DAC7615, along with the necessary control signals, such as CS and SCLK.
The settling time of the DAC7615 is typically around 10μs, but it can vary depending on the output voltage, load capacitance, and other factors. To ensure accurate output voltage, it is recommended to wait for at least 10μs after updating the DAC register before taking a measurement.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7615EB/1K Overview

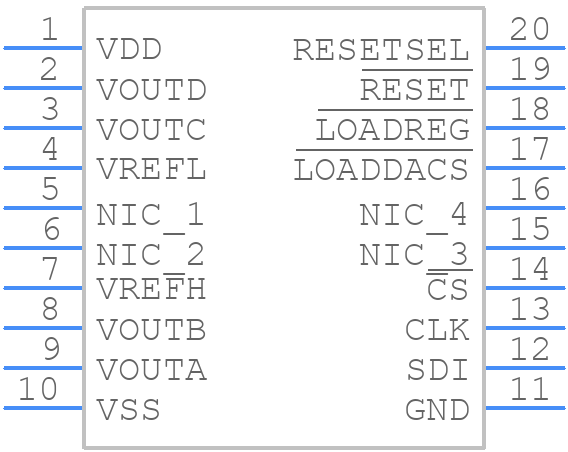

Use the download button to access the DAC7615EB/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC76,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
