DAC7615EB - Texas Instruments

Description: Quad, Serial Input, 12-Bit, Voltage Output Digital-To-Analog Converter

Download DAC7615EB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

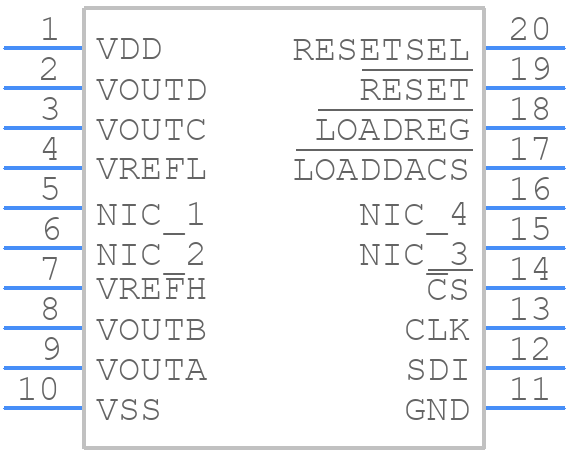

DAC7615EB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7615EB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0020A
click to zoom
3D Models
DAC7615EB - Texas Instruments - 3D model - Small Outline Packages - DB0020A
click to zoom

DAC7615EB Details

  • Manufacturer Part Number:

    DAC7615EB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.089 MHz

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

DAC7615EB Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7615EB is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to check the output current requirements of your application to ensure the DAC can supply enough current.
  • To ensure monotonicity, you need to use a 10-bit or 12-bit input code. The DAC7615EB is guaranteed to be monotonic for these input codes. If you use a 14-bit or 16-bit input code, monotonicity is not guaranteed. Check the datasheet for more information on monotonicity.
  • The settling time of the DAC7615EB is typically 10μs, but it can be as high as 20μs in some cases. This is dependent on the output capacitance and the output voltage range. Make sure to check the datasheet for more information on settling time.
  • Yes, the DAC7615EB can operate with a 3.3V supply voltage. However, the output voltage range will be limited to 0V to 3.3V. If you need a wider output voltage range, you'll need to use a higher supply voltage.
  • The DAC7615EB has a 16-bit parallel interface, which can be easily interfaced with most microcontrollers. You'll need to connect the DAC's data inputs (D0-D15) to the microcontroller's data bus, and the DAC's control inputs (CS, WR, and RD) to the microcontroller's control signals. Check the datasheet for more information on interfacing the DAC with a microcontroller.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC7615EB Overview

Use the download button to access the DAC7615EB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC76, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
